Ul Certified Ustc Litz Wire 0.1mm*600 Strands Silk Covered Copper

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Copper litz wire
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

Ul Certified Ustc Litz Wire 0.1mm*600 Strands Silk Covered Copper

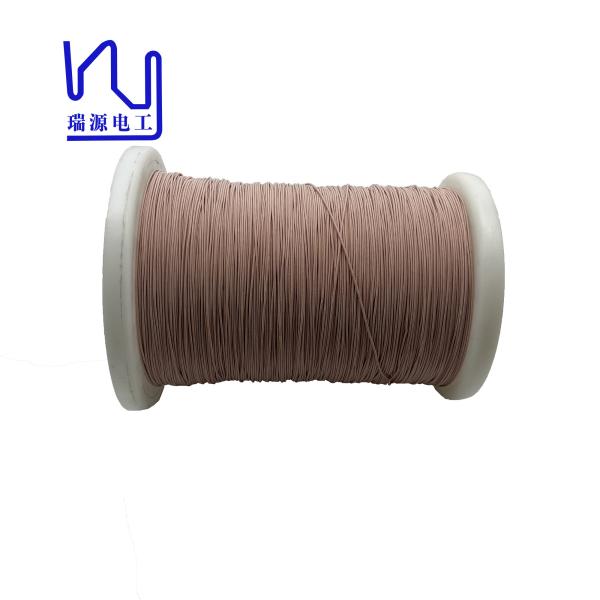

UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

As the demand for new energy vehicles such as electric vehicles and hybrid vehicles surges, nylon copper litz wire plays a vital role in providing efficient and reliable power to different vehicle components.

From battery systems to electric motors and charging infrastructure, our custom nylon copper litz wire can be customized to specific requirements such as single wire diameter, strand count or resistance.

We are committed to providing excellent customization services, allowing small batch production to meet our customers' unique needs.

Description Conductor diameter*Strand number		2UDTC- F 0. 10*600
Single wire	Conductor diameter(mm)	0 . 100
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0 .005
	Maximal overall diameter (mm)	0 . 125
	Thermal Class(℃)	155
Strand Composition	Strand number (strands)	100*6
	Pitch(mm)	65± 10
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm* mm or D)	300+300
	Times of Wrapping	2
	Overlap(%) or thickness(mm) , mini	0.05
	Wrapping direction	Z ,S
Characteristics	Max O. D (mm)	3 .78
	Max pin holes 个/6 m	98
	Max resistance ( Ω/Km at20℃)	3.968
	Mini breakdown voltage (V )	1100

Key word

UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
