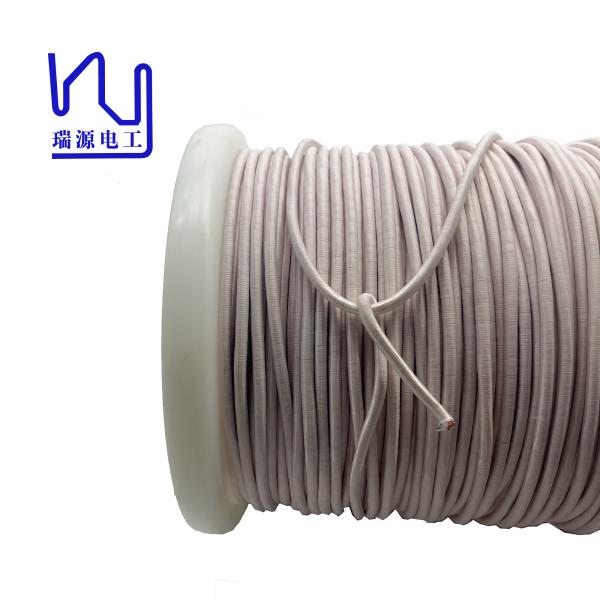

    38 Awg Enameled Stranded Ustc Litz Wire Silk Covered

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : Copper litz wire
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    38 Awg Enameled Stranded Ustc Litz Wire Silk Covered

    38 AWG Enameled Stranded Wire Silk Covered Litz Wire

    The single wire is solderable polyurethane enamel copper conductor.
    0.1mm*75 strands

    Silk cover an extra layer of insulation and protection to wires, making it ideal for applications that require enhanced signal shielding and noise reduction.

    Description

    Conductor diameter*Strand number

    1 USTC- F

    0.10*75

    Single wire

    Conductor diameter( mm)0. 100
    Conductor diameter tolerance ( mm)±0.003
    Minimal insulation thickness( mm)0.009
    Maximal overall diameter ( mm)0. 140
    Thermal Class(℃)155

    Strand
    Composition

    Strand number75
    Pitch(mm)29± 5
    Stranding directionS




    Insulation layer

    CategoryNylon
    Material specs( mm*mm or D)300
    Times of Wrapping1
    Overlap(%)or thickness( mm), mini0 02
    Wrapping directionS



    Characteristics

    Max O. D ( mm)1.33
    Max pin holes faults/6m20
    Max resistance ( Ω/ Km at20℃)31.75
    Mini breakdown voltage(V )2000

    Key word

    38 AWG Enameled Stranded Wire Silk Covered Litz Wire

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
