0.05mm*330 Self Solderable Copper Wire Nylon Served For Transformer / Motor Winding

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Copper litz wire
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

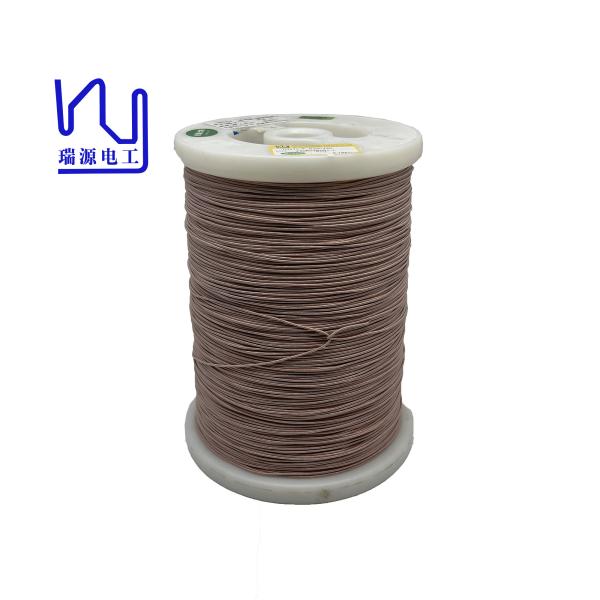

0.05mm*330 Self Solderable Copper Wire Nylon Served For Transformer / Motor Winding

0.05mm*330 Nylon Served Copper Litz Wire for Transformer / Motor Winding

This Silk covered litz wire undergoes strict control during the production process to ensure its quality and reliability.

1.High-quality ultra-fine enameled copper wire is selected as the raw material. This wire is thin and soft, and has good welding performance, which can ensure the smooth conduction of current.

2.Through the stranding process, 300 strands of thin wires are twisted into one wire, making the Litz wire highly flexible and tensile strength, which is convenient for wiring installation and maintenance.

Description Conductor diameter*Strand number		1USTC-F 0.05*330
Single wire	Conductor diameter(mm)	0.050
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diameter (mm)	0.086
	Thermal Class (℃)	155
Strand Composition	Strand number	66*5
	Pitch(mm)	29±5
	Stranding direction	Z
Insulation layer	Category	Polyester yarn
	UL	/
	Material specs(mm*mm or D)	300
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	1.55
	Max pin holes faults/6m	36
	Max resistance (Ω/Km at20℃)	31.03
	Mini breakdown voltage (V )	1300
	Meter per kilogram	166

Key word

1USTC-F 0.05mm/ 300 Nylon Served Stranded Copper Wire Silk Covered Litz Wire
