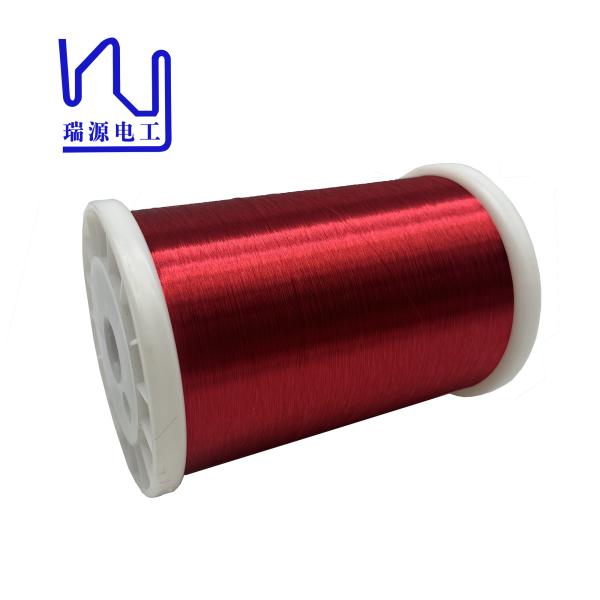

    0.05mm Insulated Copper Winding Wire Polyurethane Red Color Enameled

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.05mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    0.05mm Insulated Copper Winding Wire Polyurethane Red Color Enameled

    0.05mm Polyurethane Red Color Enameled Copper Winding Wire


    We offer different types of enameled copper wires including self-adhesive, hot air self-adhesive and solvent self-adhesive. Self-adhesive enameled copper wire has good stickiness and can be fixed and connected easily and quickly. Hot air self-adhesive enameled copper wire can bond itself after heating and is suitable for various repair and connection operations. Solvent self-adhesive enameled copper wire uses solvent dissolution and solidification to provide reliable connection effects.



    Test Items



    Requirements


    Test Data
    1st Sample2nd Sample3rd Sample
    AppearanceSmooth & CleanOKOKOK
    Conductor Diameter0.05mm ±0.002mm0.0500.0500.050
    Thickness of Insulation≥0.005mm0.00800.00800.0080
    Overall Diameter≤ 0.006 mm0.0580.0580.058
    DC Resistance≤ 9.528 Ω/m8.7538.7138.723
    Elongation≥ 12 %202021
    Breakdown Voltage≥275V863747832
    Pin Hole≤ 8 faults/5m000
    AdherenceNo cracks visibleOKOKOK
    Cut-through230℃ 2min No breakdownOKOKOK
    Heat Shock200±5℃/30min No cracksOKOKOK
    Solderability390± 5℃ 2 Sec No slagsOKOKOK
    Insulation Continuity/000

    Name

    0.05mm Polyurethane Red Color Enameled Copper Winding Wire

    Key word

    0.05mm Polyurethane Red Color Enameled Copper Winding Wire

    Insulationh

    Enamel

    Thermal rating

    155

    Diameter of the enameled copper wire

    0.05mm
