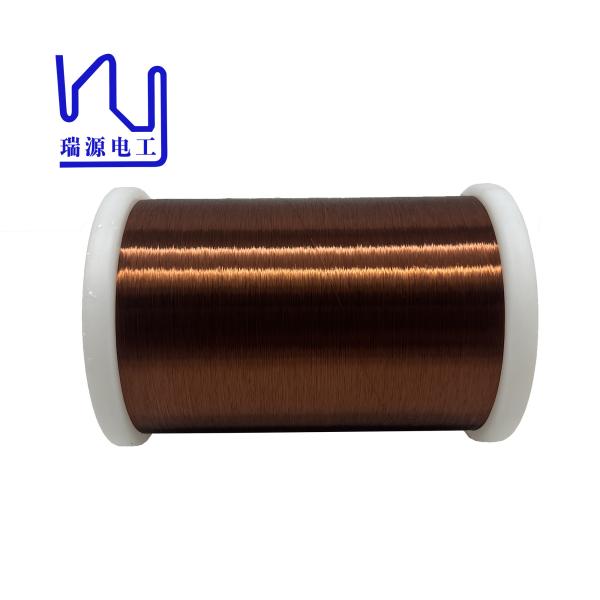

    Micro Thin Grade 2 0.08mm Awg Enameled Copper Wire Uew Soldering

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Micro Thin Grade 2 0.08mm Awg Enameled Copper Wire Uew Soldering

    Micro Thin Grade 2 0.08mm UEW Soldering Enameled Copper Wire


    This enameled copper wire is a weldable, ensuring its stability and reliability in the connection process of electronic components. Its paint film composition uses high-quality polyurethane enamel, which ensures the insulation effect and durability of the cable.


    CharacteristicsTechnical requestsTest Results
    Sample 1Sample 2
    SurfaceGoodOKOK
    Bare Wire Diameter0.080±0.0020.450.45
    Coating Thickness≥ 0.008 mm0.0110.012
    Overall Diameter≤ 0.094 mm0.0910.092
    Conductor Resistance≤ 3.608 Ω/m3.4563.443
    Elongation≥ 16 %1919
    Breakdown Voltage≥ 425 V15781496
    Pinhole Test≤ 5 holes/5m00
    Continuity≤ 40 holes/30m00
    Test ItemsTechnical RequestsResults
    AdhesiveCoating layer is goodOK
    Cut-through200℃ 2minsno breakdownOK
    Heat Shock175±5℃/30minno crackOK
    Solder Ability390± 5℃ 2SecNo blister, no expansion, no shedOK

    Name

    Micro Thin Grade 2 0.08mm UEW Soldering Enameled Copper Wire

    Key word

    Micro Thin Grade 2 0.08mm UEW Soldering Enameled Copper Wire

    Insulationh

    Enamel

    Thermal rating

    155

    Diameter of the enameled copper wire

    0.08mm
