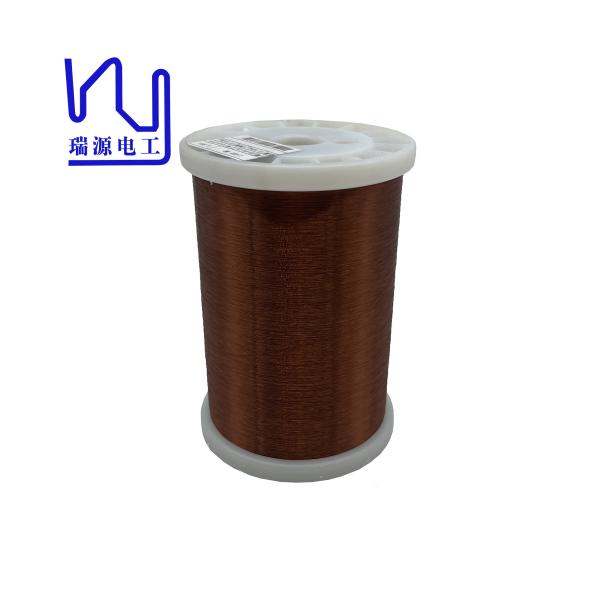

0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding from wholesalers

    Buy cheap 0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding from wholesalers
    • Buy cheap 0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding from wholesalers

    0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding

    0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding


    In the industrial field, 40AWG enameled copper wire is widely used in lead wires, windings and circuit board connections of electronic components. Its high quality and customizable color options make it the first choice for electronic equipment manufacturers and industrial customers. Whether in machine manufacturing, aerospace, automotive industry or other industries, our 40 AWG enameled copper wire can meet the needs of various customers.


    CharacteristicsTechnical requestsTest Results
    Sample 1Sample 2
    SurfaceGoodOKOK
    Bare Wire Diameter0.080±0.0020.450.45
    Coating Thickness≥ 0.008 mm0.0110.012
    Overall Diameter≤ 0.094 mm0.0910.092
    Conductor Resistance≤ 3.608 Ω/m3.4563.443
    Elongation≥ 16 %1919
    Breakdown Voltage≥ 425 V15781496
    Pinhole Test≤ 5 holes/5m00
    Continuity≤ 40 holes/30m00
    Test ItemsTechnical RequestsResults
    AdhesiveCoating layer is goodOK
    Cut-through200℃ 2minsno breakdownOK
    Heat Shock175±5℃/30minno crackOK
    Solder Ability390± 5℃ 2SecNo blister, no expansion, no shedOK

    Name

    0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding

    Key word

    0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding

    Insulationh

    Enamel

    Thermal rating

    155

    Diameter of the enameled copper wire

    0.08mm

    0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding
