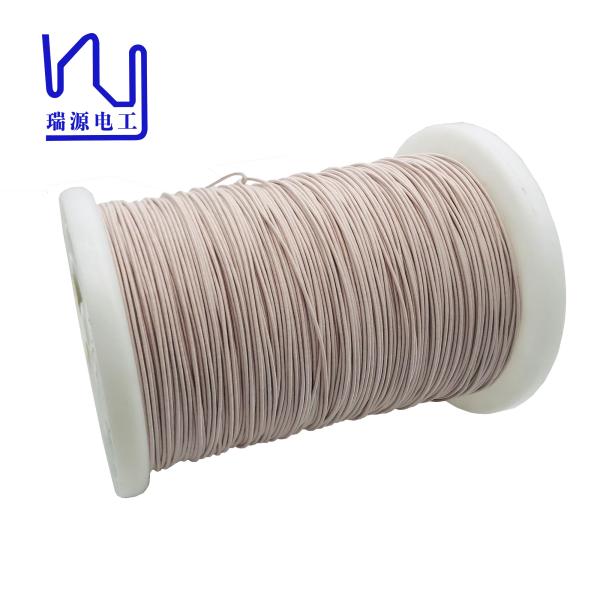

USTC/UDTC-F/H 0.08mm/40 AWG 270 Strands Nylon Serving Copper Litz Wire

Nylon served litz wire is a special type of wire commonly used in transformer windings.

This wire is made of a single copper conductor with a diameter of 0.08mm, which is then twisted with 270 strands.

Additionally, we offer the option of custom jacket using polyester or natural silk materials based on your specific requirements

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.08±0.003	0.038-0.080
Overall conductor diameter(mm)	0.087-0.103	0.090-0.093
No. Of strands	270	√
Maximum outer diameter(mm)	2.30	1.75-1.81
Pitch(mm)	27±3	√
Maximum Resistance(Ω/m 20℃)	0.01398	0.01296
Minimum Breakdown Voltage(V)	1100	2700
Solderability	380±5℃, 9s	√
Pinhole(faults/6m)	Max. 66	10

Key word:USTC/UDTC-F/H 0.08mm/40 AWG 270 Strands Nylon Serving Copper Litz Wire
