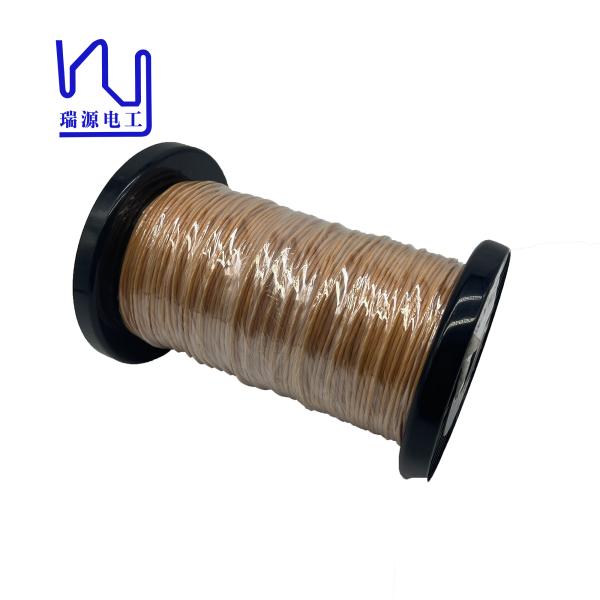

    0.1mm X 250 Strands Self Bonding Magnet Wire Triple Insulated Copper Litz

    0.1mm x 250 strands Triple Insulated copper Litz wire


    This triple insulated wire consists of 250 strands of 0.1mm enameled copper wire. Its outer insulation enables it to withstand voltages up to 6000V, making it ideal for high voltage transformer windings and a variety of other high voltage applications.


    Product Name

    0.1mm x 250 strands Triple Insulated copper Litz wire

    Size

    0.1mm*250

    Insulation

    Polyurethane

    Thermal Rating

    Class 130

    Key word

    0.1mm x 250 strands Triple Insulated copper Litz wire


    Item/No.

    Requirements

    Test Result

    Note

    Appearance

    Smooth surface, no black spots, no peeling, no copper exposure or cracking.

    OK


    Flexibility

    10 turns winding on rod, no crack, no wrinkles, no peeling

    OK


    Solderability

    420+/-5℃, 2-4s

    OK

    Can be peeled off, can be soldered

    Overall Diameter

    2.2+/-0.20mm

    2.187mm


    Conductor Diameter

    0.1+/-0.005mm

    0.105mm


    Resistance

    20℃, ≤9.81Ω/km

    5.43


    Breakdown Voltage

    AC 6000V/60S, no breakdown of insulation

    OK


    Withstand Bending

    Withstand 3000V for 1min.

    OK


    Elongation

    ≥15%

    18%


    Heat Shock

    ≤150° 1hr 3d no crack

    OK


    Withstand friction

    Not less than 60 times

    OK


    Withstand temperature

    -80℃-220℃ high temperature test, no wrinkle on surface, no peeling, no crack

    OK
