Brand Name : | Ruiyuan |
Model Number : | FIW |
Certification : | UL/ISO9001/ISO14001/RoHS/Reach |
Price : | Negotiation |
Payment Terms : | Negotiation |
Supply Ability : | 10Ton/week |
Delivery Time : | 2-15 days |

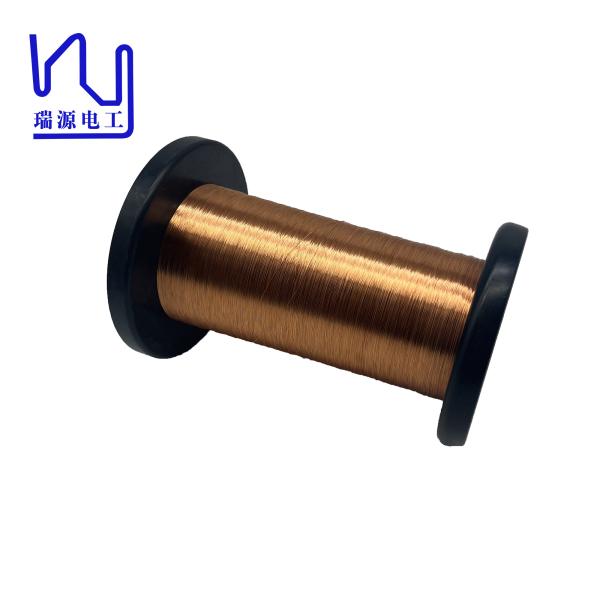

FIW4 Class 180 0.14mm Full Insulated Zero Defect Solder able Enameled Copper Wire For High Voltage Transformer
FIW wire as an innovative wire product, is attracting the attention of the manufacturing industry with its excellent performance and wide application prospects. As a wire product that can replace traditional TIW (triple insulated wire) for the production of switching transformers, FIW has become one of the first choices of manufacturers with its unique advantages and diverse applications.
Nom.Diameter(mm) | Min. Breakdown voltage (V) 20℃ | |||||
FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
![]() |
