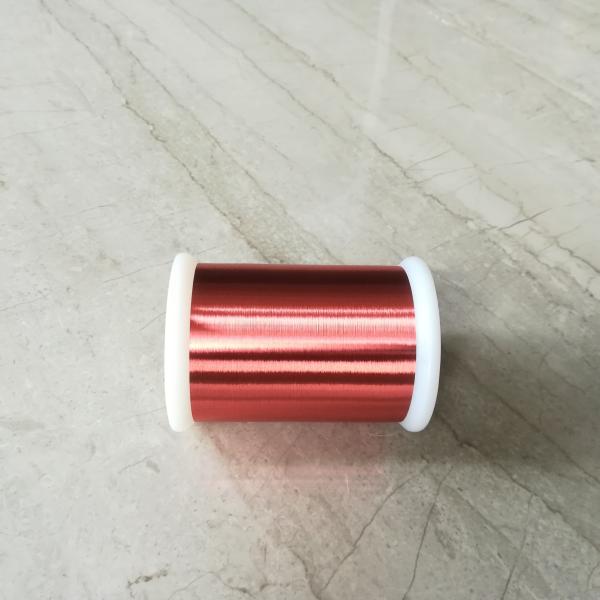

    2UEW155 0.02mm 0.025mm Enameled Coated Copper Wire For Voice Coils

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.02mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    2UEW155 0.02mm 0.025mm Enameled Coated Copper Wire For Voice Coils

    2UEW155 0.02mm 0.025mm Enameled Coated Copper Wire for Voice Coils

    A voice coil is a coil of wire connected to a diaphragm or cone in a speaker. When an audio signal passes through the coil, it interacts with the magnetic field to create sound by moving the diaphragm, or cone, back and forth, creating sound waves.

    The voice coil is an integral part of the mechanical structure of the speaker and converts electrical signals into sound.

    Characteristics
    Technical requests
    Test Results
    Conclusion
    Sample 1
    Sample 2
    Sample 3
    Surface
    Good
    OK
    OK
    OK
    OK
    Bare Wire Diameter
    0.020±
    0.001
    0.020
    0.020
    0.020
    OK
    Coating Thickness
    min. 0.001mm
    0.002
    0.002
    0.002
    OK
    Bonding Thickness
    min. 0.001mm
    0.002
    0.002
    0.002
    OK
    Overall Diameter
    min. 0.028mm
    0.0273
    0.0273
    0.0273
    OK
    Conductor Resistance(20℃)
    55-57 Ω/m
    55.41
    55.41
    55.41
    OK
    Elongation
    ≥ 6 %
    11
    11
    11
    OK
    Breakdown Voltage
    ≥ 250 V
    min. 380V
    OK
    Pinhole Test
    ≤ 8 holes/5m
    1
    0
    1
    OK
    Solderability
    375± 5℃ 2 Sec Smooth
    OK
    OK
    OK
    OK
    Bonding Strength
    min. 3g
    5g
    OK
    Key word
    Class 155 0.02mm Super thin enameled copper wire for voice coils

    Product name

    Class 155 0.02mm Super thin enameled copper wire for voice coils
