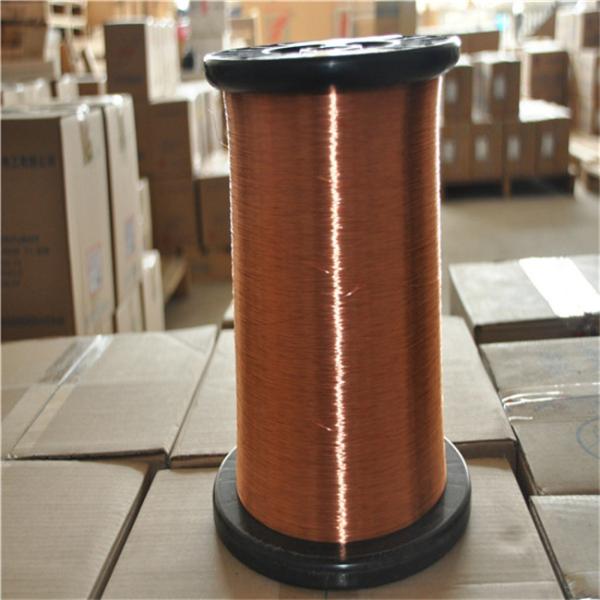

    FIW4 3800V 0.18mm Class 180 Fully Insulated Copper Wire For Transformer Windings

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.18mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    FIW4 3800V 0.18mm Class 180 Fully Insulated Copper Wire For Transformer Windings

    FIW4 3800V 0.18mm Class 180 Fully Insulated Copper Wire For Transformer Windings


    Fully insulated wire (FIW) is a type of wire that has multiple layers of insulation to prevent electrical shocks or short circuits. It is often used for building switching transformers that require high voltage and high FIW has some advantages over triple insulated wire (TIW), such as lower cost, smaller size, better windability and solderability FIW is also approved by various safety standards


    Product

    FIW4 3800V 0.18mm Class 180 Fully Insulated Copper Wire For Transformer Windings

    Key word

    FIW4 3800V 0.18mm Class 180 Fully Insulated Copper Wire For Transformer Windings


    Nom.Diameter(mm)Min. Breakdown voltage (V) 20℃
    FIW3FIW4FIW5FIW6FIW7FIW8
    0.100210626733969526565617857
    0.120228029644332570070688436
    0.140243231924712623277529272
    0.1602660349651686840851210184
    0.1802888380056247448927211096
    0.2003040402859287828972811628
    0.25036484788706893481162813908
    0.300402853207676100321238814744
    0.40042005530770098701204014210
    0.450448058808050102201239014560
    0.475469061609030119001477017640
    0.5004690616090301190014770-
    0.560376349827155932811501-
    0.600397552477420959311766-
    0.710424055657738991112084-
