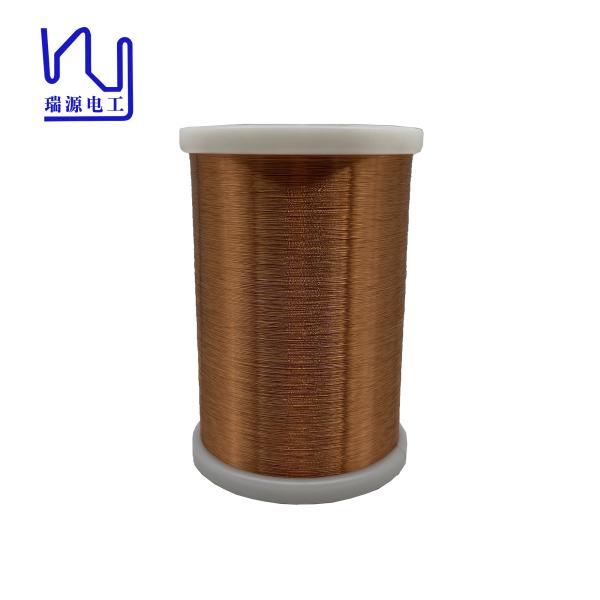

    UL Certificated 39WG NEMA Copper Enameled Wire 0.09mm Diameter

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.09mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    UL Certificated 39WG NEMA Copper Enameled Wire 0.09mm Diameter

    UL Certificated High Quality 39WG NEMA Copper Enameled Wire


    Enameled copper wire is an important component in the production of microelectronic products because of its fine wire diameter, high temperature resistance, good insulation performance, and excellent conductivity. Its versatility and reliability make it the first choice for manufacturers of small electronic equipment.


    As the demand for smaller, more powerful electronics continues to grow, enamelled copper wire will undoubtedly remain a staple in microelectronics.


    Product

    UL Certificated High Quality 39WG NEMA Copper Enameled Wire

    Key word

    UL Certificated High Quality 39WG NEMA Copper Enameled Wire

    Test Item

    Unit

    Standard Value

    Reality Value

    1st Sample

    2nd Sample

    3rd Sample

    Appearance

    Smooth & Clean

    OK

    OK

    OK

    OK

    Conductor Diameter

    0.090±

    0.002

    0.090

    0.090

    0.090

    OK

    Thickness of Insulation

    ≥ 0.010 mm

    0.013

    0.012

    0.013

    OK

    Overall Diameter

    ≤ 0.107 mm

    0.103

    0.102

    0.103

    OK

    DC Resistance

    ≤ 2.835Ω/m

    2.702

    2.729

    2.716

    OK

    Elongation

    ≥ 17 %

    22.5

    23.4

    21.9

    OK

    Breakdown Voltage

    ≥ 700 V

    2081

    2143

    1986

    OK

    Pin Hole

    ≤ 5 Faults/5m

    0

    0

    0

    OK

    Continuity

    ≤12Faults/30m

    0

    0

    0

    OK

    Test Items

    Technical Requests

    Results

    Adhesive

    Coating layer is good

    OK

    Cut-through

    200℃ 2mins no breakdown

    OK

    Heat Shock

    175±5℃/30min no crack

    OK

    Solder Ability

    390± 5℃ 2Sec Smooth

    OK
