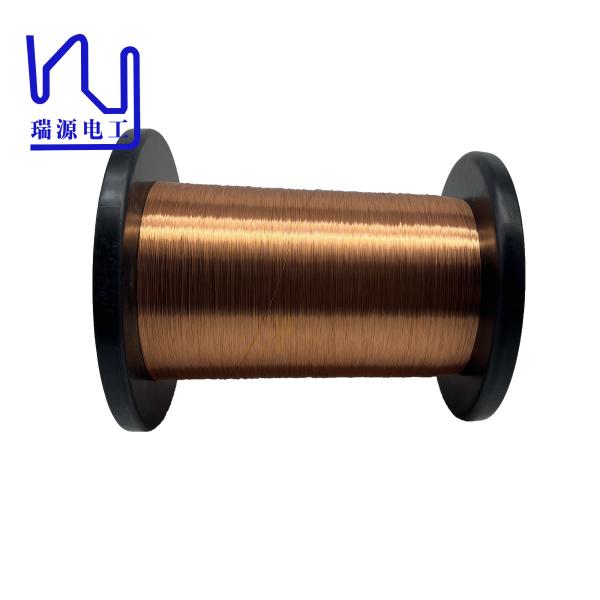

    0.28mm 0.3mm Class155 / 180 Enameled Copper Winding Wire Solid Conductor Insulated

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.28mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    0.28mm 0.3mm Class155 / 180 Enameled Copper Winding Wire Solid Conductor Insulated

    0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated


    In the field of motor windings, enamelled copper wire plays a vital role in ensuring efficient and reliable performance. When wrapped around the stator and rotor core of a motor, it generates the electromagnetic field required for the motor to operate.


    Copper's high electrical conductivity ensures minimal energy losses and optimal energy transfer within the motor, resulting in increased efficiency and lower operating costs.


    Product

    0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated

    Key word

    0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated

    Test Items

    Requirements

    Test Data
    1st Sample2nd Sample3rd Sample
    AppearanceSmooth & CleanOKOKOK

    Conductor Diameter

    0.280mm ±0.004mm

    0.281

    0.281

    0.281

    Thickness of Insulation≥ 0.025 mm0.0310.0300.030
    Overall Diameter≤ 0.316mm0.3120.3110.311
    DC Resistance≤ 0.288Ω/m0.27520.27660.2755
    Elongation≥ 23%34.732.233.5
    Breakdown Voltage≥2300V555253715446
    Pin Hole≤5(faults)/5m000
    AdherenceNo cracks visibleOKOKOK
    Cut-through200℃ 2min No breakdownOKOKOK
    Heat Shock175±5℃/30min No cracksOKOKOK
    Solderability390± 5℃ 2 Sec No slagsOKOKOK
    Insulation Continuity////
