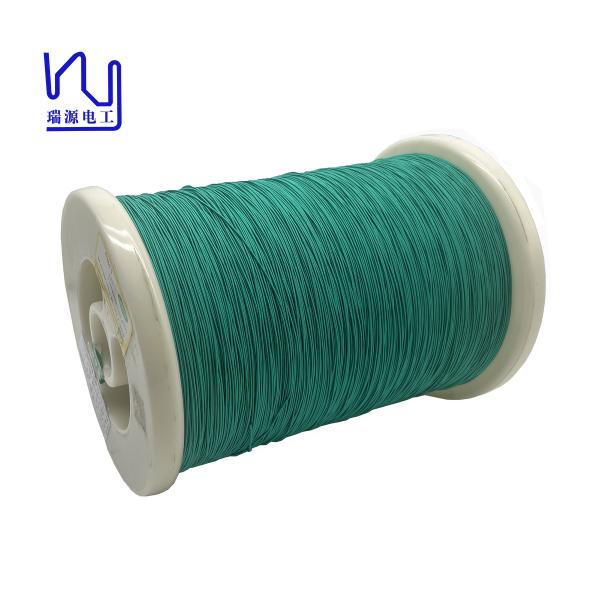

0.071mm / 84 Strands Real Silk Served litz Wire Copper Stranded
Wire
In addition to its excellent electrical properties, using silk as a
housing material offers several unique advantages. Natural silk is
known for its exceptional strength and durability, making it a
reliable choice for audio applications where longevity and
reliability are critical.
Additionally, the natural properties of silk make it resistant to
temperature changes and environmental factors, ensuring that the
thread maintains its performance characteristics over time.
Item | Technical requests | Sample 1 | Sample 2 |
Single wire diameter mm | 0.077-0.084 | 0.078 | 0.084 |
Conductor Diameter mm | 0.071±0.003 | 0.068 | 0.070 |
O.D. mm | Max.0.97 | 0.80 | 0.87 |
Pitch | 29±5 | √ | √ |
Resistance Ω/m(20℃) | 0.05940 | 0.05337 | 0.05340 |
Breakdown Voltage V | Min.950 | 3000 | 3300 |
Pinhole | 40 faults/5m | 7 | 8 |
Solerability | 390 ±5C° 6s | ok | ok |
key word | Green color real silk covered litz wire 0.071mm*84 copper conductor
For high-end Audio |
