    Professional Grade Copper Conductor Litz Wire 2700V Breakdown Voltage Dacron / Nylon / Silk Jacket

    2700V Breakdown Voltage Silk Covered Litz Wire for Professional Copper Conductor Needs


    Flat silk covered litz wire is a special type of wire with unique characteristics that can be used in various industrial fields.This kind of litz wire is designed to provide superior performance and reliability in demanding applications.

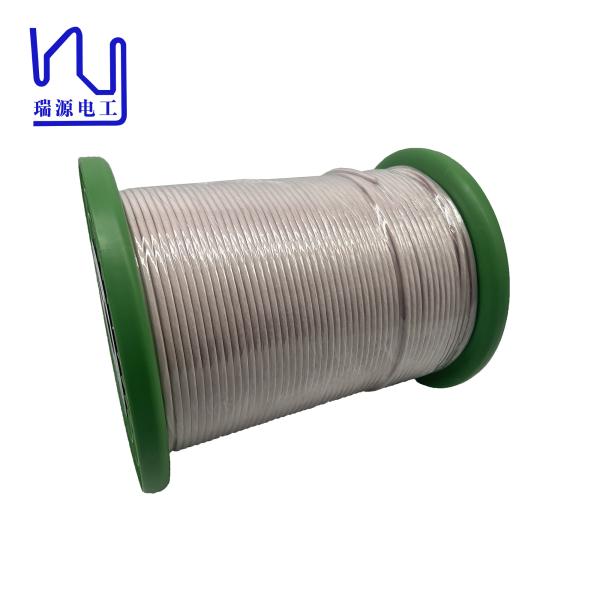

    This wire is a customized product with a diameter of 0.1mm and consists of 460 strands, and the overall dimension is 4mm wide and 2mm thick, covered with nylon yarn for added protection and insulation.


    Item

    Unit

    Technical requests

    Reality Value


    Conductor Diameter

    mm

    0.1±0.003

    0.098-0.10

    Single wire diameter

    mm

    0.110-0.125

    0.110-0.114

    Width

    mm

    4

    3.74-3.96

    Thickness

    mm

    2

    2.06-2.26

    Resistance (20℃)

    Ω/m

    Max.0.005176

    0.004795

    Breakdown Voltage

    V

    Min.500

    2700

    No. of strands


    460

    460
