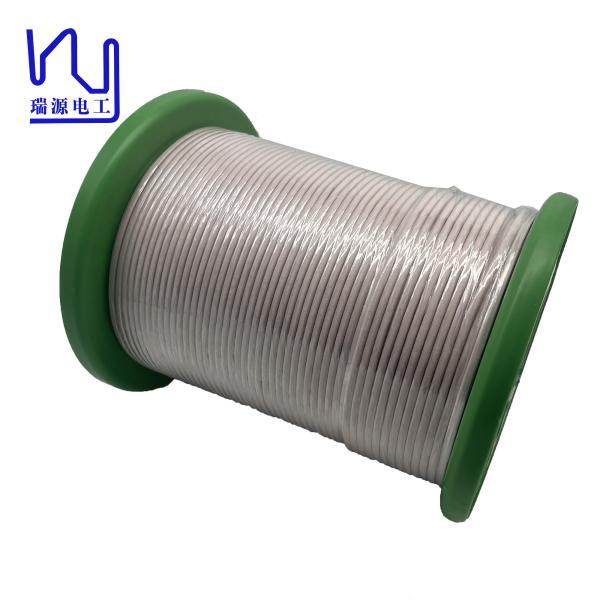

    2700v Breakdown Voltage Copper Insulated Nylon Served Litz Wire With 460 Strands

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : USTCF litz wire
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Delivery Time : 7 days
    Payment Terms : TT/Paypal
    Supply Ability : 100kg/week
    Price : Negotiation
    • Product Details
    • Company Profile

    2700v Breakdown Voltage Copper Insulated Nylon Served Litz Wire With 460 Strands

    0.1mmx460 Nylon Served Litz Wire Flat Litz Wire


    Flat silk covered litz wire has a variety of applications, one of its main uses is motor windings. The unique structure and properties of this wire make it ideal for use in motor windings, where high efficiency and reliability are critical.


    Flat silk covered litz wire reduces power loss and increases efficiency, helping to improve the overall performance of the motor, making it the first choice for industrial and commercial motor applications.


    Item

    Unit

    Technical requests

    Reality Value


    Conductor Diameter

    mm

    0.1±0.003

    0.098-0.10

    Single wire diameter

    mm

    0.110-0.125

    0.110-0.114

    Width

    mm

    4

    3.74-3.96

    Thickness

    mm

    2

    2.06-2.26

    Resistance (20℃)

    Ω/m

    Max.0.005176

    0.004795

    Breakdown Voltage

    V

    Min.500

    2700

    No. of strands


    460

    460
