0.1mm 0.15mm 0.2mm Ustc Litz Wire Natural Sillk Copper

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Copper litz wire
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

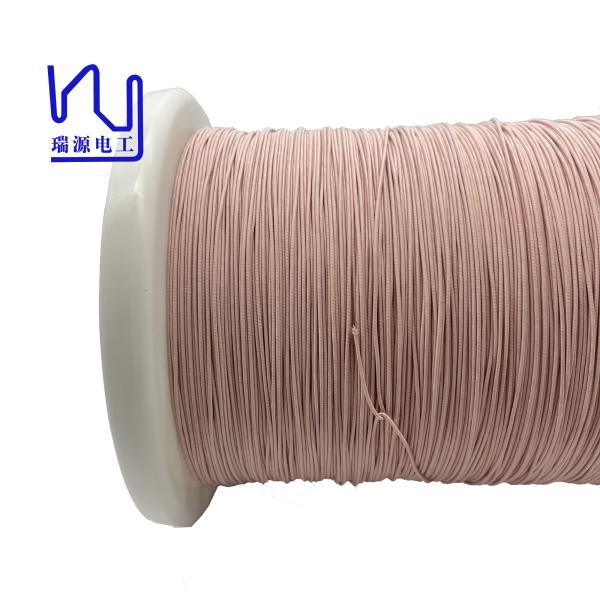

0.1mm 0.15mm 0.2mm Ustc Litz Wire Natural Sillk Copper

USTC-H High frequency litz wire 0.1mm 0.15mm 0.2mm natural sillk Copper Litz Wire

Nylon served Litz wire has excellent properties such as high frequency, low resistance, and low inductance. These characteristics make it suitable for a variety of electronic devices, especially those that require high-frequency transmission.

Product name: USTC-H High frequency litz wire 0.1mm 0.15mm 0.2mm natural sillk Copper Litz Wire
Description Conductor diameter*Strand number		2USTC- F 0. 10*70
Single wire	Conductor diameter(mm)	0. 100
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0 .005
	Maximal overall diameter (mm)	0 . 125
	Thermal Class(℃)	155
Strand Composition	Strand number	70
	Pitch(mm)	27± 3
	Stranding direction	S
Insulation layer	Category	Nylon
	Material specs(mm*mm or D)	300
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	1.20
	Max pin holes 个/6m	40
	Max resistance (Ω/Km at20℃)	34.01
	Mini breakdown voltage (V )	1100
Key word	USTC-H High frequency litz wire 0.1mm 0.15mm 0.2mm natural sillk Copper Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
