    0.35mm Hot Wind Self Bonding Magnet Wire 5000v

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.35mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

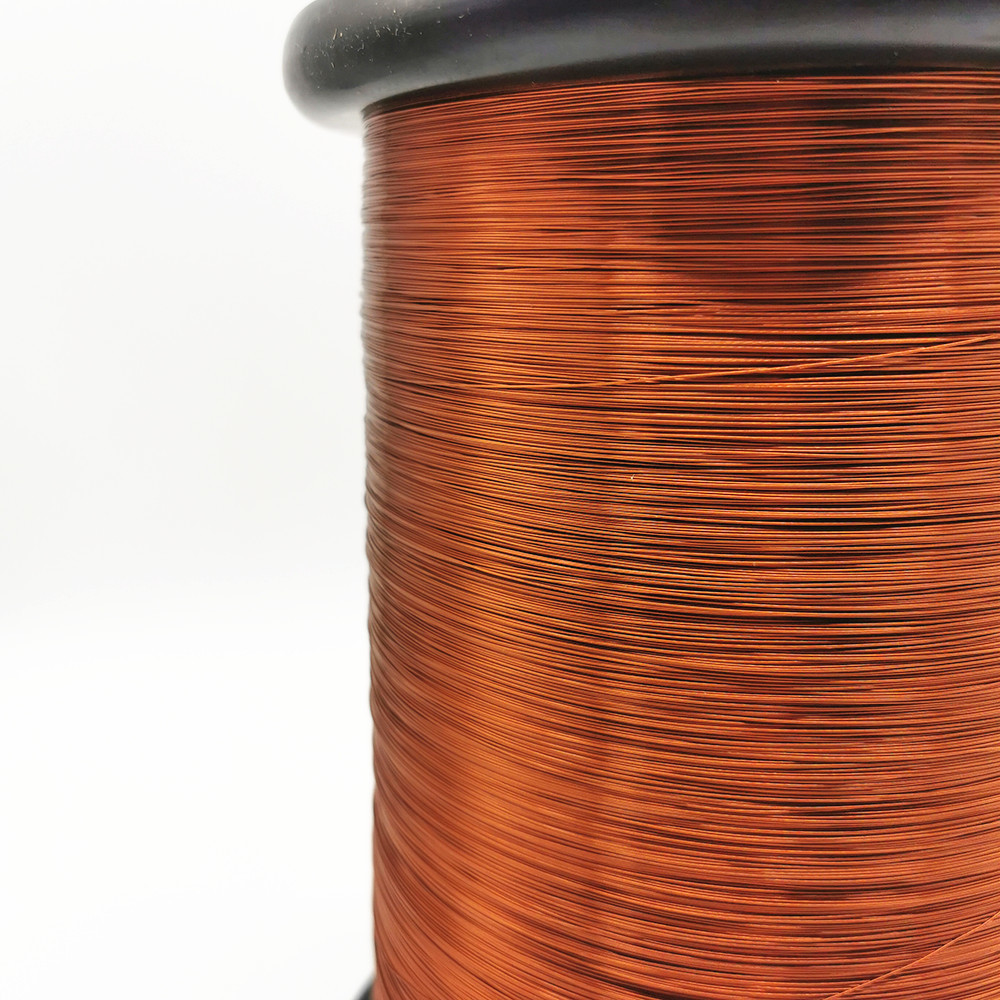

    0.35mm Hot Wind Self Bonding Magnet Wire 5000v

    0.35mm Hot Wind Magnet Wire Self Bonding Wire


    Application:


    Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;


    High-temperature voice coils,such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers andhigh-temperature-resistant voice coils;


    micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.


    Characteristics
    Technical requests

    Test Results

    Sample 1
    Sample 2
    Sample 3
    Bare Wire Diameter
    0.120±0.002
    0.120
    0.120
    0.120
    (Basecoat ) Overall dimensions
    Max.0.173
    0.165
    0.165
    0.165
    Insulation film thickness
    Min.0.041
    0.045
    0.045
    0.046

    Conductor Resistance

    ≤ 1585Ω/km
    1540
    1540
    1541
    Resistance to softening Continue 2 times pass230℃/Good
    Elongation
    ≥ 32 %
    41
    41
    42
    Breakdown Voltage
    ≥ 4704V
    9247
    Adhesive
    Coating layer is good
    OK
    Solder Ability
    390± 5℃ 2 Sec Smooth
    OK
