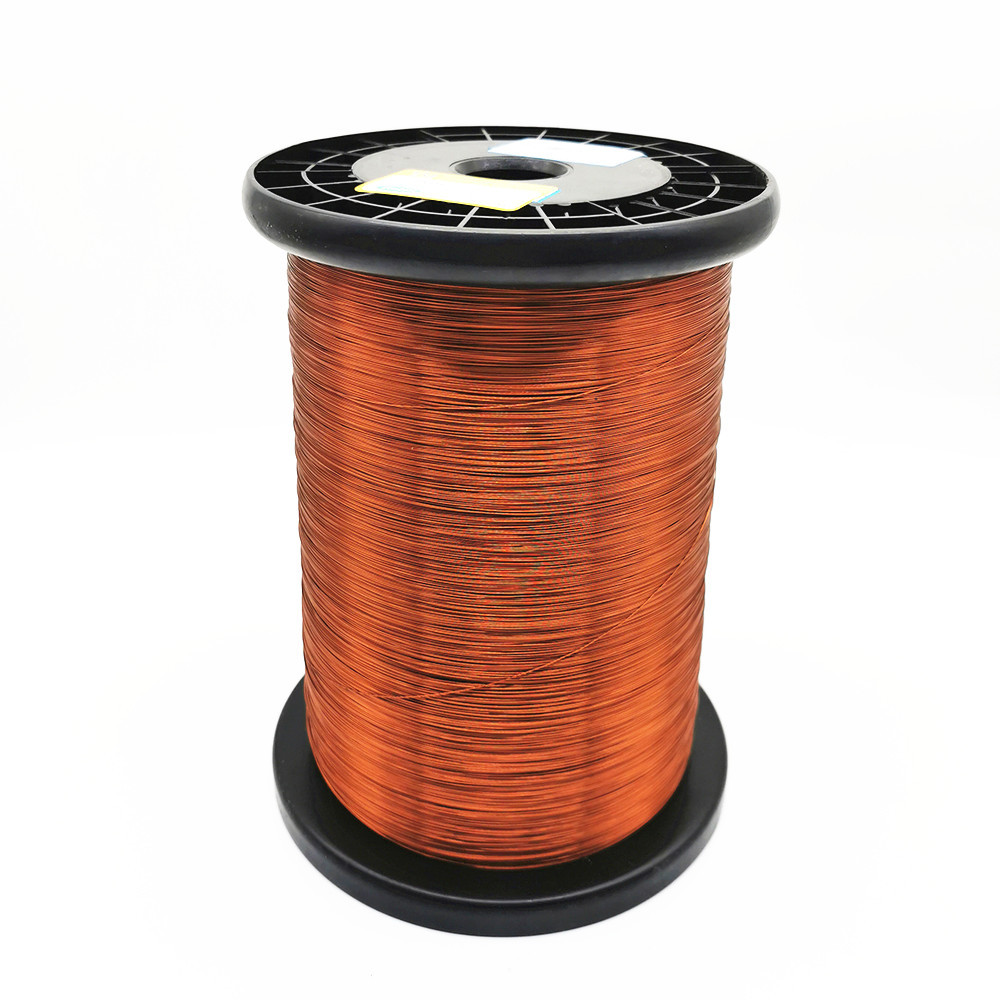

    0.35mm Bondable Magnet Wire Alcohol / Solvent Polyurethane

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.35mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    0.35mm Bondable Magnet Wire Alcohol / Solvent Polyurethane

    0.35mm Alcohol / Solvent Self Bonding Enameled Copper Wire


    Bondable magnet wire, also referred to as self-bonding magnet wire, is film insulated wire top-coated with a thermoplastic adhesive. When activated, the thermoplastic bonds turn to turn windings to produce self-supporting coils or coils of unusual or difficult configuration. Use of bondable magnet wire may offer advantages over conventional magnet wire in certain winding applications, eliminating the need for bobbins as well as taping or varnishing steps. Activation of the bondcoat may be achieved with either heat, or in some cases solvent, or a combination of the two. Although bondcoats may be added to any conventional film, consideration should be given to the resoftening temperature of the adhesive in that it may not withstand the operating temperature of higher rated primary insulations.


    Characteristics
    Technical requests

    Test Results

    Sample 1
    Sample 2
    Sample 3
    Bare Wire Diameter
    0.120±0.002
    0.120
    0.120
    0.120
    (Basecoat ) Overall dimensions
    Max.0.173
    0.165
    0.165
    0.165
    Insulation film thickness
    Min.0.041
    0.045
    0.045
    0.046

    Conductor Resistance

    ≤ 1585Ω/km
    1540
    1540
    1541
    Resistance to softening ℃Continue 2 times pass230℃/Good
    Elongation
    ≥ 32 %
    41
    41
    42
    Breakdown Voltage
    ≥ 4704V
    9247
    Adhesive
    Coating layer is good
    OK
    Solder Ability
    390± 5℃ 2 Sec Smooth
    OK
