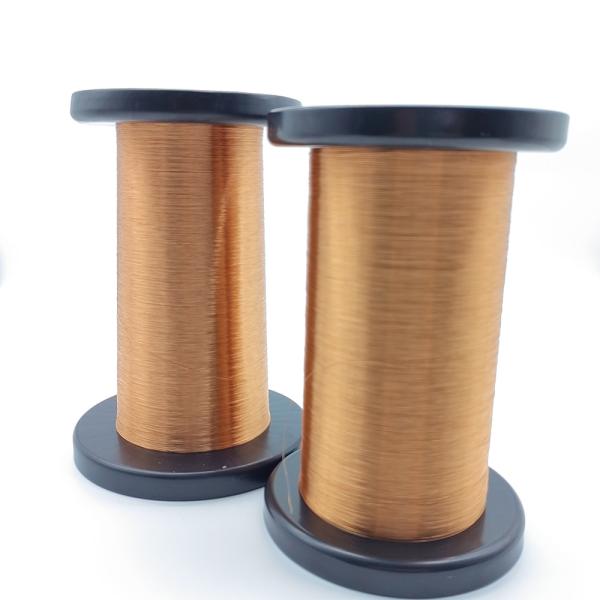

    2uew 155 0.016mm Self Bonding Wire Enameled Copper

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.016mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    2uew 155 0.016mm Self Bonding Wire Enameled Copper

    2UEW 155 0.016mm Enameled Copper Wire Self Bonding Wire


    Our enamelled wire has been widedly used in different types of micor motors, and it's been proved great quality and high stability.


    Characteristics
    Technical requests
    Test ResultsConclusion
    Sample 1Sample 2Sample 3
    SurfaceGoodGoodGoodGoodOK
    Bare Wire Diameter0.016±0.0010.0160.0160.016OK
    Overall diameter≤ 0.020mm0.0150.01950.0198OK
    Insulation thicknessMin0.0010.0020.0020.002OK
    Self-bonding layer thicknessMin0.0010.00150.00150.0015OK
    Elongation≥ 6 %121212OK
    Breakdown Voltage≥ 120V248260270OK
    Pinhole Test≤ 5 hole/5m000OK
    Enamel Continuity(50v/30m)≤ 60 hole/5m000OK
    Bonding Strength≥5 g101010OK
    Electrical Resistance84.29-91.37Ω/m86.386.386.3OK
    AdhesiveNo crackOK
    Heat Shock175℃/1h no crackOK
    Solder Ability390℃±5C/2S SmoothOK
