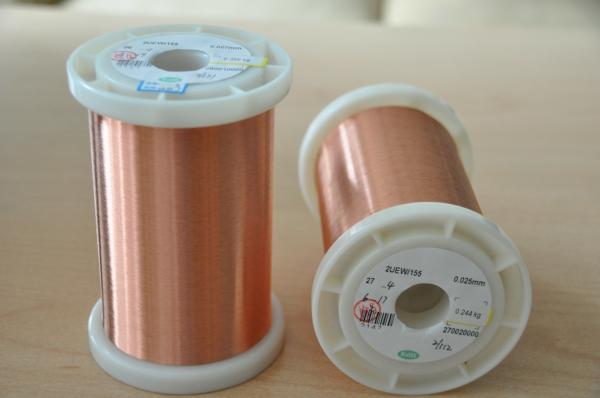

HIGH QUALITY 0.16 MM MAGNET WIRE SEFL BONDING WIRE FOR TRANSFORMER GOLD BONDING WIRE
A special type of enamelled wire is self bonding or adelaide enameleld wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents.Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.
FEATURES
1. Temperature Rate: 155/180/220℃
2. Twotypes of self-bonding materials and can be processed with either alcohol,heat or electric methods. The alcohol must be removed from the coil to ensure the long term insulation degradatoin does not occur. The wire has unifor lubrication and good winding property
3. We also provider solderable wires to save process time for customers
4. Size range:0.015-0.6mm
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | | Elongation | Pin Hole | Electrical Resistance | |
| | mm | | | ≥ V | | ≥% | ≤Default/5m | Ω/km (20℃) | |
| | | | | Mandrel Method | Twisted Method | | | Min. | Max. |
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.085 | ±0.002 | 0.008 | 0.099 | 550.000 | 1200.00 | 16.00 | 5.00 | 2851.00 | 3187.00 |
| 0.090 | ±0.002 | 0.010 | 0.106 | 650.000 | 1200.00 | 16.00 | 5.00 | 2550.00 | 2835.00 |
| 0.095 | ±0.002 | 0.010 | 0.111 | 650.000 | 1200.00 | 17.00 | 5.00 | 2294.00 | 2538.00 |
| 0.100 | ±0.002 | 0.011 | 0.118 | 650.000 | 1200.00 | 17.00 | 5.00 | 2074.00 | 2286.00 |
| 0.110 | ±0.002 | 0.011 | 0.129 | ---- | 1300.00 | 17.00 | 5.00 | 1720.00 | 1882.00 |
| 0.120 | ±0.002 | 0.011 | 0.139 | ---- | 1500.00 | 17.00 | 5.00 | 1450.00 | 1577.00 |
| 0.130 | ±0.002 | 0.011 | 0.149 | ---- | 1500.00 | 18.00 | 5.00 | 1239.00 | 1340.00 |
| 0.140 | ±0.002 | 0.011 | 0.159 | ---- | 1600.00 | 19.00 | 5.00 | 1070.00 | 1153.00 |
| 0.150 | ±0.002 | 0.011 | 0.169 | ---- | 1700.00 | 20.00 | 5.00 | 934.10 | 1002.00 |
| 0.160 | ±0.002 | 0.012 | 0.180 | ---- | 1700.00 | 21.00 | 5.00 | 822.30 | 879.40 |
| 0.170 | ±0.003 | 0.013 | 0.192 | ---- | 2000.00 | 22.00 | 5.00 | 721.10 | 787.10 |
| 0.180 | ±0.003 | 0.014 | 0.204 | ---- | 2000.00 | 22.00 | 5.00 | 644.40 | 700.70 |
| 0.190 | ±0.003 | 0.014 | 0.214 | ---- | 2000.00 | 23.00 | 5.00 | 579.40 | 627.80 |
| 0.200 | ±0.003 | 0.014 | 0.224 | ---- | 2000.00 | 23.00 | 5.00 | 523.70 | 565.70 |
| 0.210 | ±0.003 | 0.014 | 0.234 | ---- | 2000.00 | 23.00 | 5.00 | 475.70 | 512.30 |
| 0.220 | ±0.003 | 0.014 | 0.245 | ---- | 2200.00 | 23.00 | 5.00 | 434.00 | 466.20 |
| 0.230 | ±0.003 | 0.016 | 0.257 | ---- | 2200.00 | 24.00 | 5.00 | 397.50 | 426.00 |
| 0.240 | ±0.003 | 0.016 | 0.267 | ---- | 2200.00 | 24.00 | 5.00 | 365.50 | 390.80 |
| 0.250 | ±0.003 | 0.016 | 0.277 | ---- | 2300.00 | 24.00 | 5.00 | 337.10 | 359.80 |
| 0.260 | ±0.004 | 0.018 | 0.287 | ---- | 2300.00 | 25.00 | 5.00 | 309.60 | 335.00 |
| 0.270 | ±0.004 | 0.018 | 0.297 | ---- | 2300.00 | 25.00 | 5.00 | 287.40 | 310.30 |
| 0.280 | ±0.004 | 0.022 | 0.313 | ---- | 2300.00 | 25.00 | 5.00 | 267.60 | 288.20 |
| 0.290 | ±0.004 | 0.022 | 0.323 | ---- | 2500.00 | 25.00 | 5.00 | 249.70 | 268.40 |
| 0.300 | ±0.004 | 0.022 | 0.334 | ---- | 2500.00 | 25.00 | 5.00 | 233.50 | 250.60 |
| 0.310 | ±0.004 | 0.022 | 0.344 | ---- | 2500.00 | 25.00 | 5.00 | 218.90 | 234.40 |
| 0.315 | ±0.004 | 0.022 | 0.349 | ---- | 2500.00 | 25.00 | 5.00 | 212.10 | 227.00 |
| 0.320 | ±0.004 | 0.023 | 0.355 | ---- | 2700.00 | 25.00 | 5.00 | 205.60 | 219.80 |
| 0.330 | ±0.004 | 0.023 | 0.365 | ---- | 2700.00 | 25.00 | 5.00 | 193.50 | 206.60 |
| 0.350 | ±0.004 | 0.023 | 0.385 | ---- | 2700.00 | 26.00 | 5.00 | 172.20 | 183.40 |
| 0.355 | ±0.004 | 0.023 | 0.390 | ---- | 2700.00 | 26.00 | 5.00 | 167.40 | 178.20 |
| 0.370 | ±0.004 | 0.024 | 0.406 | ---- | 2900.00 | 26.00 | 5.00 | 154.30 | 163.90 |
| 0.380 | ±0.004 | 0.024 | 0.416 | ---- | 2900.00 | 26.00 | 5.00 | 146.40 | 155.30 |
Tianjin Ruiyuan Electric Material Co,.Ltd
RUIYUAN was established in 2002, located in Tianjin City,the second
largest port city in China.We have been focusing on different kinds
of high quality wires: enameled round copper wire, rectangular
enameled copper triple insulated wire, silk covered Litz wire,
bonding wire and special enameled wire for 21 years.Ruiyuan is one
of the pioneers in producing micro thin enameled wires below 0.03mm
in China. Our R & D team has 20 years of market experience. In
2019, our finest diameter is 0.011mm, and mass production has been
achieved. All of our products are UL, RoHS certified, in line with
industry standards IEC60317, JIS C 3202, NEMA, NW82.
