CLASS F 0.35MM TRIPLE INSULATED COPPER WIRE ENAMELED COPPER WIRE
FOR WINDING

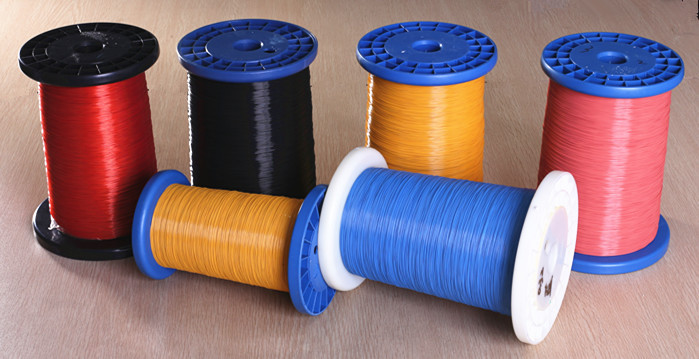

TIW, a unique product for small transformers. Three layer extruded
coatings of high performance polymer resins gives excellent
dielectric properties to this type of winding wires. Unlike
enamelled wires, three layers of insulation are extruded over the
copper conductor by an automated manufacturing process ensure
perfect central position of conductor. The conventional enamelled
wire winding coils requires insulation between the primary and
secondary coils by means of barrier tape or inter layer tape, to
isolate primary and secondary windings. Since three layers coating
is having very high dielectric strength, it has very less creepage
factor. This positive feature of TIW serves to downsize switching
transformers, and promises high production efficiency and cost
reduction. Depending on the design, the transformer size can be
reduced up to 40% and weight up to 60% as compared to transformers
made up of enamelled wires.
MINIATURIZE OF SWITCHING TRANSFORMER
Exclusion of 'Creepage Distance' requirement and interleaved
insulation bring epochal miniaturization.
EXCELLENT INSULATION QUALITY
Supreme UL grade of insulation:Reinforced Insulation
The most advanced insulation type: Triple extrusion
Electric Strength Test:1.Straight Test:AC 3,000V/1 min above
2.Twisted Teat:AC 6,000V/1 min above
SUITABILITY FOR HIGH FREQUENCY
Suitable for 30kHz above high frequency purpose
Equalized electric quality with extrusion type
Low dielectric constant
Handing/Storage convenience-Superior physical strength and
durability for abrasion
IMPROVED PRODFUCTIVITY
Simple production processes: No barrier tape and interleaved
insulation tape are required
Solderability: Soldering can be conducted without removal of
insulation layer
| Conductor m/m | End product m/m | Maximum Conductor Resistance at 20 ℃ | Minimum Elongation % |
| Diameter m/m | Tolerance m/m | Target outside diameter | Tolerance m/m |
|
| 0.15 | ±0.008 | 0.35 | ±0.02 | 1111 | 15 |
| 0.16 | ±0.008 | 0.36 | ±0.02 | 908.8 | 15 |
| 0.17 | ±0.008 | 0.37 | ±0.02 | 853.5 | 15 |
| 0.18 | ±0.008 | 0.38 | ±0.02 | 757 | 15 |
| 0.19 | ±0.008 | 0.39 | ±0.02 | 676.2 | 15 |
| 0.2 | ±0.008 | 0.4 | ±0.02 | 607.6 | 15 |
| 0.21 | ±0.008 | 0.41 | ±0.02 | 549 | 15 |
| 0.22 | ±0.008 | 0.42 | ±0.02 | 498.4 | 15 |
| 0.23 | ±0.008 | 0.43 | ±0.02 | 454.5 | 15 |
| 0.24 | ±0.008 | 0.44 | ±0.02 | 416.2 | 15 |
| 0.25 | ±0.008 | 0.45 | ±0.02 | 382.5 | 15 |
| 0.26 | ±0.010 | 0.46 | ±0.02 | 358.4 | 15 |
| 0.27 | ±0.010 | 0.47 | ±0.02 | 331.4 | 15 |
| 0.28 | ±0.010 | 0.48 | ±0.02 | 307.3 | 15 |
| 0.29 | ±0.010 | 0.49 | ±0.02 | 285.7 | 20 |
| 0.3 | ±0.010 | 0.5 | ±0.02 | 262.9 | 20 |
| 0.32 | ±0.010 | 0.52 | ±0.02 | 230 | 20 |
| 0.35 | ±0.010 | 0.55 | ±0.02 | 191.2 | 20 |
| 0.37 | ±0.010 | 0.57 | ±0.02 | 170.6 | 20 |
| 0.4 | ±0.010 | 0.6 | ±0.02 | 145.3 | 20 |
| 0.45 | ±0.010 | 0.65 | ±0.02 | 114.2 | 20 |
| 0.5 | ±0.010 | 0.7 | ±0.02 | 91.4 | 20 |
| 0.55 | ±0.020 | 0.75 | ±0.02 | 78.2 | 20 |
| 0.6 | ±0.020 | 0.8 | ±0.02 | 65.3 | 20 |
| 0.65 | ±0.020 | 0.85 | ±0.02 | 88.3 | 20 |
| 0.7 | ±0.020 | 0.9 | ±0.02 | 47.2 | 20 |
| 0.75 | ±0.020 | 0.95 | ±0.02 | 41.2 | 20 |
| 0.8 | ±0.020 | 1 | ±0.02 | 36.1 | 25 |
| 0.85 | ±0.020 | 1.05 | ±0.02 | 31.9 | 25 |
| 0.9 | ±0.020 | 1.1 | ±0.02 | 28.4 | 25 |
| 0.95 | ±0.020 | 1.15 | ±0.02 | 25.4 | 25 |
| 1 | ±0.030 | 1.2 | ±0.02 | 23.3 | 25 |
