Self Solderable Triple Insulated Copper Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.15-1.0mm
Certification :	VDE/RoHS/UL
Price :	Negotiation
Payment Terms :	Negotiation, T/T, L/C
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

Class B / F Colored Enameled Copper Wire / Self Solderable Triple Insulated Copper Wire

CLASS B/F COLORED ENAMELED COPPER WIRE SELF SOLDERABLE TRIPLE INSULATED COPPER WIRE
Ultra fine 0.15mm self solderable triple insulated wire is the product only rare manufacturer can provide, espeiclaly for class F/155. We may be the first provider who can produce 0.15mm class 155 with mass production in the world. That is better than Furukawa, this is not what we said but our customer in Europe.And our quality is similar to Furukawa, but price is much lower. We are the best choice for your enterprice.We also can provide self bonding or self adhesive triple insulated wire
FEATURE

Condutor size:0.15mm-1.0mm
Temperature Class:130/155
Working voltage:1000vms
Solder tempeature:420-470C
Breakdown voltage: Over 15KV
Complies with UL-2353,VDE IEC60950/61558 and CQC safety requirment

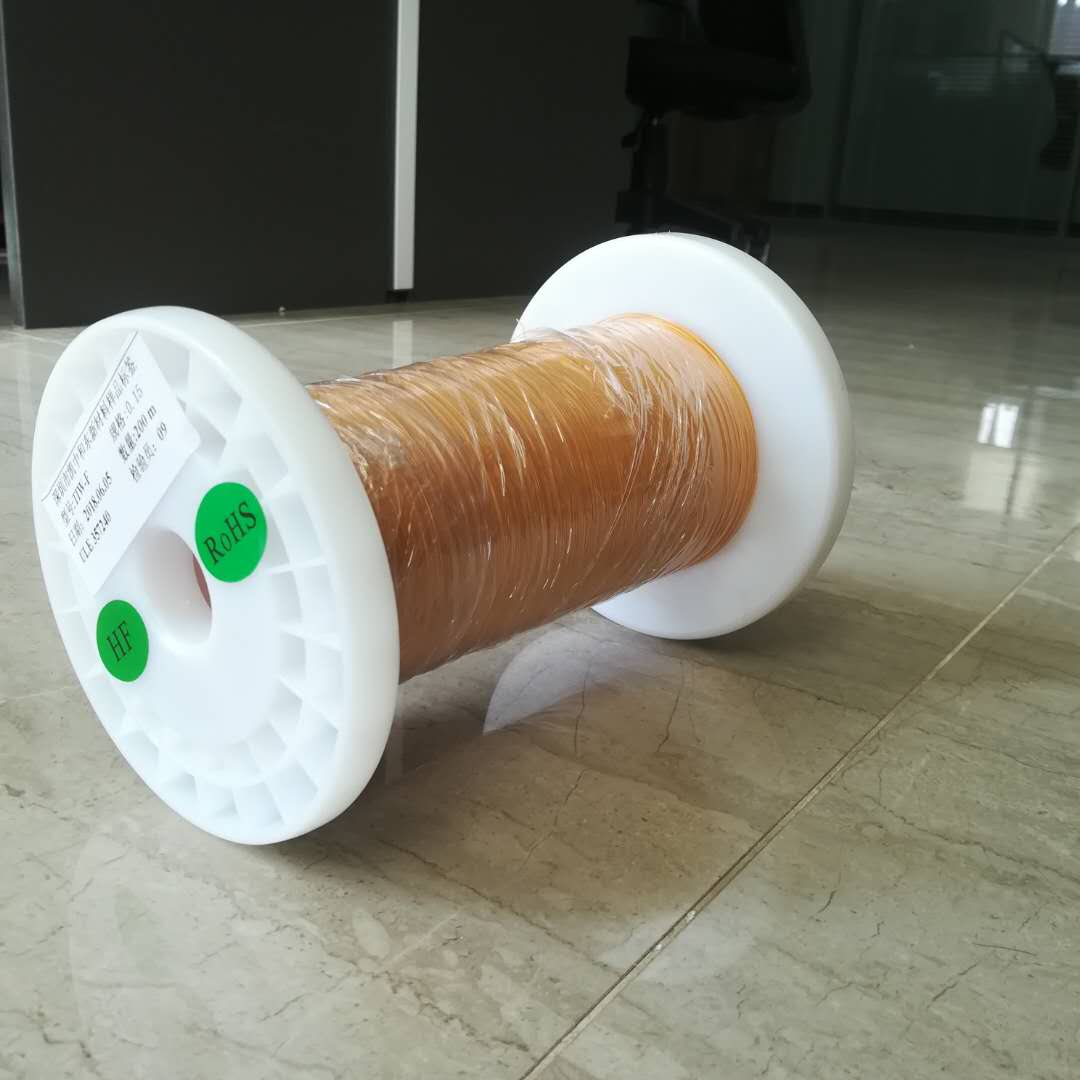

0.15MM F-4.jpg
SPECIFICATION

Conductor m/m		End product m/m		Maximum Conductor Resistance at 20 ℃	Minimum Elongation %
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
0.15	±0.008	0.35	±0.02	1111	15
0.16	±0.008	0.36	±0.02	908.8	15
0.17	±0.008	0.37	±0.02	853.5	15
0.18	±0.008	0.38	±0.02	757	15
0.19	±0.008	0.39	±0.02	676.2	15
0.2	±0.008	0.4	±0.02	607.6	15
0.21	±0.008	0.41	±0.02	549	15
0.22	±0.008	0.42	±0.02	498.4	15
0.23	±0.008	0.43	±0.02	454.5	15
0.24	±0.008	0.44	±0.02	416.2	15
0.25	±0.008	0.45	±0.02	382.5	15
0.26	±0.010	0.46	±0.02	358.4	15
0.27	±0.010	0.47	±0.02	331.4	15
0.28	±0.010	0.48	±0.02	307.3	15
0.29	±0.010	0.49	±0.02	285.7	20
0.3	±0.010	0.5	±0.02	262.9	20
0.32	±0.010	0.52	±0.02	230	20
0.35	±0.010	0.55	±0.02	191.2	20
0.37	±0.010	0.57	±0.02	170.6	20
0.4	±0.010	0.6	±0.02	145.3	20
0.45	±0.010	0.65	±0.02	114.2	20
0.5	±0.010	0.7	±0.02	91.4	20
0.55	±0.020	0.75	±0.02	78.2	20
0.6	±0.020	0.8	±0.02	65.3	20
0.65	±0.020	0.85	±0.02	88.3	20
0.7	±0.020	0.9	±0.02	47.2	20
0.75	±0.020	0.95	±0.02	41.2	20
0.8	±0.020	1	±0.02	36.1	25
0.85	±0.020	1.05	±0.02	31.9	25
0.9	±0.020	1.1	±0.02	28.4	25
0.95	±0.020	1.15	±0.02	25.4	25
1	±0.030	1.2	±0.02	23.3	25
