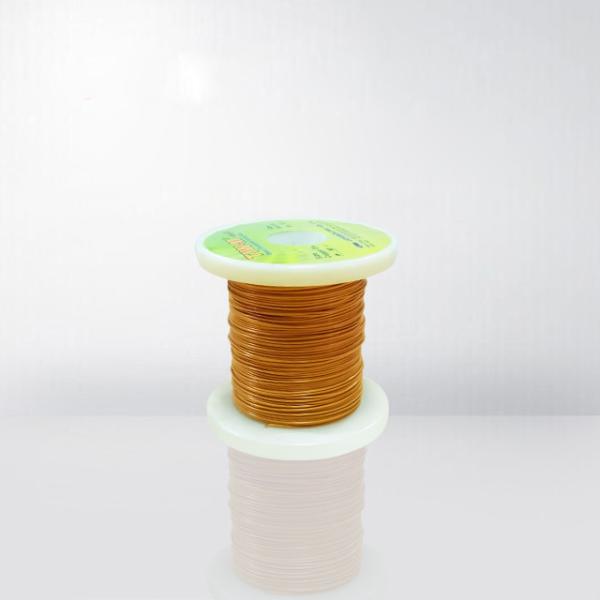

0.20mm Three Layers Insulated Copper Wire Enameled Magnet Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.20mm
Certification :	ISO9001/ISO14001 /UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation, T/T, L/C
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

0.20mm Three Layers Insulated Copper Wire Enameled Magnet Wire

0.20MM THREE LAYERS INSULATED COPPER WIRE ENAMELED MAGNET WIRE

TIW,triple insulated copper wire a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or inter layer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.
EXCELLENT INSULATION QUALITY
Supreme UL grade of insulation:Reinforced Insulation
The most advanced insulation type: Triple extrusion
Electric Strength Test:

1.Straight Test:AC 3,000V/1 min above
2.Twisted Teat:AC 6,000V/1 min above

FEATURES AND BENEFITS

The insulation of the wire, which is made up of three layers, completely isolates the primary from secondary of the transformer.
Unlike conventional enameled wires, the TIW series is classified as a wire with three-layered, reinforced insulation (Whereas, SWW-2 is a wire with supplementary insulation) as generally provided for in various safety standards. Therefore, it eliminates barriers, interlayer tapes, and insulating tubes in a transformer.
In addition to the reduction in size and economy in material cost of the tramsformer made, TIW has an advantage of improving its performance by reducing the distance between the coils.

SUITABILITY FOR HIGH FREQUENCY
Suitable for 30kHz above high frequency purpose
Equalized electric quality with extrusion type
Low dielectric constant
Handing/Storage convenience-Superior physical strength and durability for abrasion

IMPROVED PRODUCTIVITY
Simple production processes: No barrier tape and interleaved insulation tape are required
Solderability: Soldering can be conducted without removal of insulation layer

0.20mm Three Layers Insulated Copper Wire Enameled Magnet Wire

TIW-B 0.20MM TEST REPORT

	Characteristics	Test Standard	Conclusion
1	Package	Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete	OK
2	Bare Wire Diameter	0.20±0.008MM	0.195-0.203
3	Overall Diameter	0.40±0.020MM	0.391-0.399
4	Conductor Resistance	MAX: 595.50Ω/KM	558Ω/KM
5	Breakdown voltage of straight wire	The length of wire 305mm,wind on the copper bar, test condition 1mA/60s/6.0KV	OK
6	Elongation	MIN:15%	20-23.6%
7	Solder ability	430± 5℃ 3-4 Secs	OK
Conclusion		Qualified

Conductor m/m		End product m/m		Maximum Conductor Resistance at 20 ℃	Minimum Elongation %
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
0.10	±0.008	0.30	±0.02	2264.7	15
0.12	±0.008	0.32	±0.02	1786.0	15
0.14	±0.008	0.34	±0.02	1286.0	15
0.15	±0.008	0.35	±0.02	1111.0	15
0.16	±0.008	0.36	±0.02	908.8	15
0.17	±0.008	0.37	±0.02	853.5	15
0.18	±0.008	0.38	±0.02	757.0	15
0.19	±0.008	0.39	±0.02	676.2	15
0.20	±0.008	0.40	±0.02	607.6	15
0.21	±0.008	0.41	±0.02	549.0	15
0.22	±0.008	0.42	±0.02	498.4	15
0.23	±0.008	0.43	±0.02	454.5	15
0.24	±0.008	0.44	±0.02	416.2	15
0.25	±0.008	0.45	±0.02	382.5	15
0.26	±0.010	0.46	±0.02	358.4	15
0.27	±0.010	0.47	±0.02	331.4	15
0.28	±0.010	0.48	±0.02	307.3	15
0.29	±0.010	0.49	±0.02	285.7	20
0.30	±0.010	0.50	±0.02	262.9	20
0.32	±0.010	0.52	±0.02	230.0	20
0.35	±0.010	0.55	±0.02	191.2	20
0.37	±0.010	0.57	±0.02	170.6	20
0.40	±0.010	0.60	±0.02	145.3	20
0.45	±0.010	0.65	±0.02	114.2	20
0.50	±0.010	0.70	±0.02	91.4	20
0.55	±0.020	0.75	±0.02	78.2	20
0.60	±0.020	0.80	±0.02	65.3	20
0.65	±0.020	0.85	±0.02	88.3	20
0.70	±0.020	0.90	±0.02	47.2	20
0.75	±0.020	0.95	±0.02	41.2	20
0.80	±0.020	1.00	±0.02	36.1	25
0.85	±0.020	1.05	±0.02	31.9	25
0.90	±0.020	1.10	±0.02	28.4	25
0.95	±0.020	1.15	±0.02	25.4	25
1.00	±0.030	1.20	±0.02	23.3	25
