    0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

    Ask Lasest Price
    Brand Name : Rvyuan
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation, T/T
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    Model Number : 0.1 - 1.0mm
    • Product Details
    • Company Profile

    0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

    UL CERTIFICATED 0.1-1.0MM SELF BONDING SILK COVERED TRIPLE INSULATED WIRE

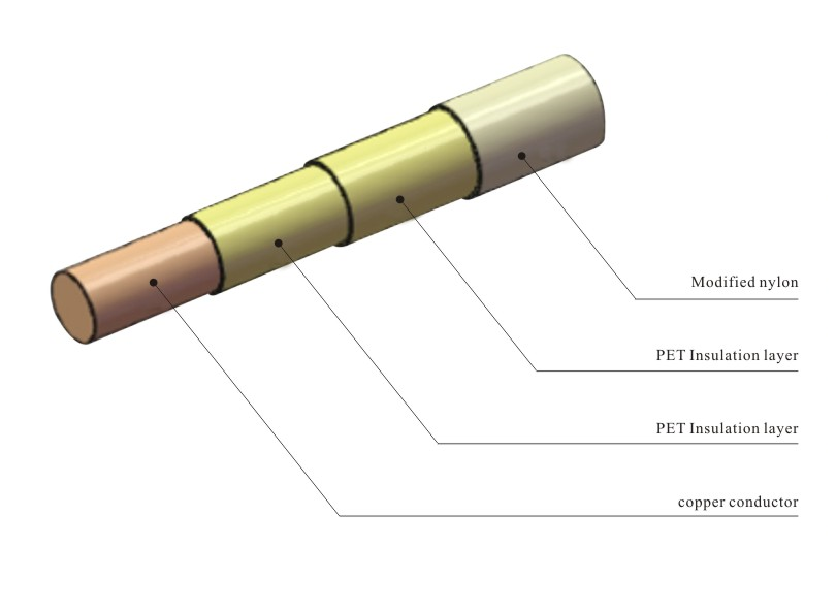

    We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.Silk covered triple insulated wire are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. By putting a stick silk from around the package in three layers of insulation surface, achieve three layers of insulation adhesive. Part can replace original adhesive three-tier insulation lines, costs and delivery the original factory.

    FEATURES AND BENEFITS:

    • Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.

    • Soldered without any surface layer bared (stripped).

    • Smoothly coiled by automatic coiling machines.

    • Offering a wide size choice of 0.1 to 1.0mm (conductor diameter

    0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

    0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated

    0.1 - 1.0mm Self Bonding Silk Covered Triple Insulated Wire UL Certificated


    SPECIFICATION:

    Conductor m/mEnd product m/mMaximum Conductor Resistance at 20 ℃Minimum Elongation %
    Diameter m/mTolerance m/mTarget outside diameterTolerance m/m
    0.1±0.0080.3±0.022264.715
    0.12±0.0080.32±0.02178615
    0.14±0.0080.34±0.02128615
    0.15±0.0080.35±0.02111115
    0.16±0.0080.36±0.02908.815
    0.17±0.0080.37±0.02853.515
    0.18±0.0080.38±0.0275715
    0.19±0.0080.39±0.02676.215
    0.2±0.0080.4±0.02607.615
    0.21±0.0080.41±0.0254915
    0.22±0.0080.42±0.02498.415
    0.23±0.0080.43±0.02454.515
    0.24±0.0080.44±0.02416.215
    0.25±0.0080.45±0.02382.515
    0.26±0.0100.46±0.02358.415
    0.27±0.0100.47±0.02331.415
    0.28±0.0100.48±0.02307.315
    0.29±0.0100.49±0.02285.720
    0.3±0.0100.5±0.02262.920
    0.32±0.0100.52±0.0223020
    0.35±0.0100.55±0.02191.220
    0.37±0.0100.57±0.02170.620
    0.4±0.0100.6±0.02145.320
    0.45±0.0100.65±0.02114.220
    0.5±0.0100.7±0.0291.420
    0.55±0.0200.75±0.0278.220
    0.6±0.0200.8±0.0265.320
    0.65±0.0200.85±0.0288.320
    0.7±0.0200.9±0.0247.220
    0.75±0.0200.95±0.0241.220
    0.8±0.0201±0.0236.125
    0.85±0.0201.05±0.0231.925
    0.9±0.0201.1±0.0228.425
    0.95±0.0201.15±0.0225.425
    1±0.0301.2±0.0223.325
