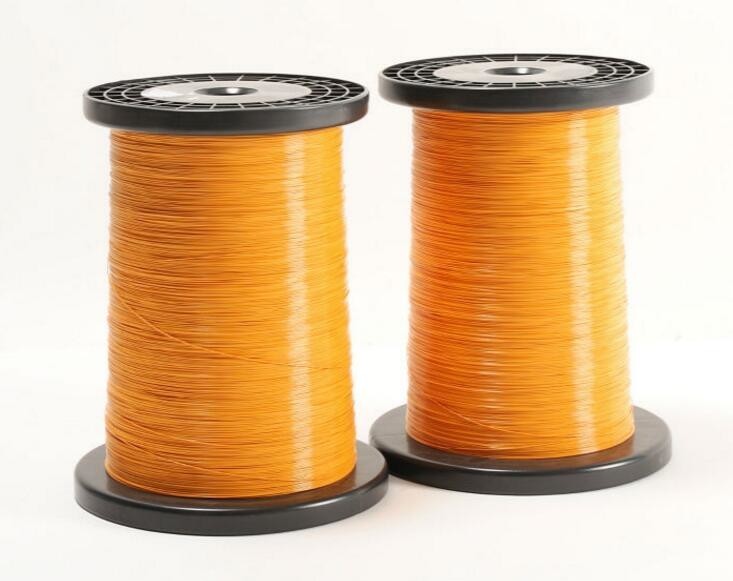

TIW-B COMMON 0.1MM-1MM TRIPLE INSULATED WIRE, LAYERS HIGH TEMPERATURE MAGNET WIRE

We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.Unlike enameled wires, 3 layers of insulation of patented design are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. Each TIW wire is equipped with a three-fold insulation around the conductor, which has been authorized as Reinforced Insulation. As a result, the creepage distance can never be limited and no insulation barrier is needed, when specifying distances between termination pins and coils.

FEATURES AND BENEFITS:

• Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.

• Falling into Thermal Resistance A(105°C) to E(120°C) Click "Proof of Safety & Reliability" for higher temp conditions.

• Soldered without any surface layer bared (stripped).

• Smoothly coiled by automatic coiling machines

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 21 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
