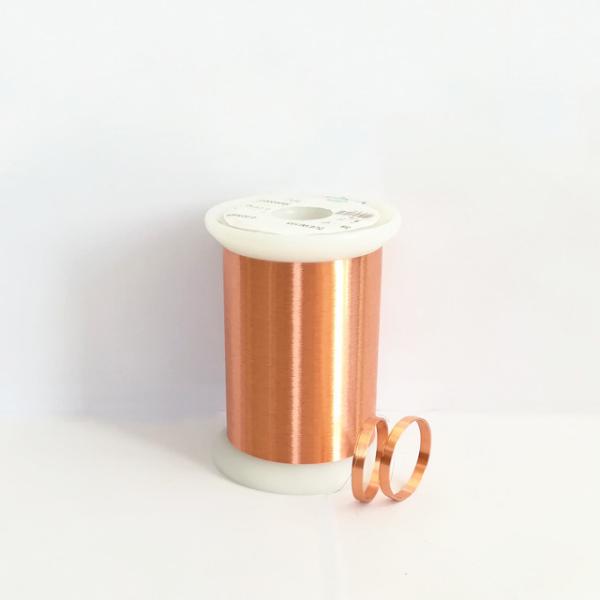

    0.012 - 0.8mm Self Bonding Wire Self Adhesive Enamelled Copper Winding Wire

    Ask Lasest Price
    Brand Name : Rvyuan
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation
    Delivery Time : 2-15 workding days
    Supply Ability : 200 Ton/Tons per Month
    Model Number : 0.012-0.8mm
    • Product Details
    • Company Profile

    0.012 - 0.8mm Self Bonding Wire Self Adhesive Enamelled Copper Winding Wire

    SELF BONDING WIRE SELF ADHESIVE COPPER WINDING WIRE SELF BONDING AWG ENAMELED WIRE


    We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.


    We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...


    We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines.Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applicationsThermal class is155C, 180 C, 200 C, 220 C.Conductor material includes enameled round wire, enameled copper-clad aluminum wire


    CharacteristicsTechnical requestsTest ResultsConclusion
    Sample 1Sample 2Sample 3
    SurfaceGoodOKOKOKOK
    Bare Wire Diameter0.016±0.0010.0160.0160.016OK
    Overall diameter≤ 0.020mm0.0150.01950.01958OK
    Insulation thicknessMin0.0010.0020.0020.002OK
    Self-bonding layerthicknessMin0.0010.00150.00150.0015OK
    Elongation≥ 6 %121212OK
    Breakdown Voltage≥ 120V248260270OK
    Pinhole Test≤ 5 hole/5m000OK
    EnamelContinuity(50v/30m)≤ 60 hole/5m000OK
    Bonding Strength≥5 g10109OK
    Electrical Resistance84.29-91.37Ω/m86.386.386.3OK
    Test ItemsTechnical RequestsResults

    Conclusion:Approved

    Remark:
    AdhesiveNo crackOK
    Heat Shock175℃/1h no crackOKAudit byTested by
    Solder Ability390℃±5C/2S SmoothOKPan Lihong
