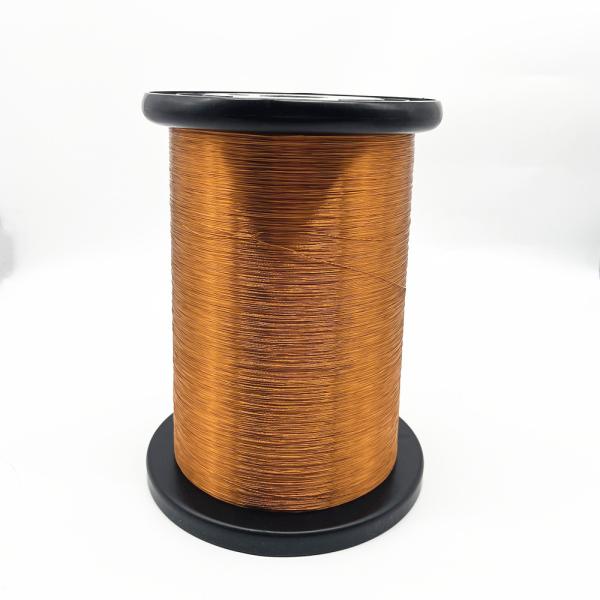

    Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.25mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper

    Polyurethane insulated 0.25mm enameled copper wire


    UEW+NY is a dual film solderable insulation composed of Modified Polyurethane resins with a Polyamide (nylon) overcoat. The nylon overcoat provides a significant reduction in the wire's coefficient of friction aiding both windability and the production of compact coils.


    Enameled wire is a main variety of winding wire. It consists of conductor and insulating layer. After the bare wire is softened by annealing, it is painted and baked many times.


    CharacteristicsTechnical requestsTest ResultsConclusion
    Sample 1Sample 2Sample 3
    1SurfaceGoodOKOKOKOK
    2Bare Wire Diameter0.025±0.0030.2500.2500.250OK
    0.003
    3Coating Thickness≥ 0.016 mm0.0250.0240.024OK
    4Overall Diameter≤ 0.277 mm0.2750.2740.274OK
    5Conductor Resistance≤ 0.360 Ω/m0.3520.3530.356OK
    6Elongation≥ 24 %29%30%29%OK
    7Breakdown Voltage≥ 2300 V355336673614OK
    8Pinhole Test≤ 5 hole/5m000OK
    9Enamel continuity≤5hole/30m000OK
    Remark:
    Test ItemsTechnical RequestsResults

    Conclusion:

    Approved

    1AdhesiveCoating layer is goodOK
    2Cut-through200℃ 2mins no breakdownOK
    3Heat Shock180±5℃/30min no crackOKAudit byTested by
    4Solder Ability390± 5℃ 2 Sec SmoothOKPan Lihong
    5Solvent ResistanceNo blister, no expansion, no shedOK

    Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper

    Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper

    Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper

    Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper

    Quality Polyurethane Insulated Magnet Winding Wire 33 Awg 0.25mm Enameled Copper for sale
