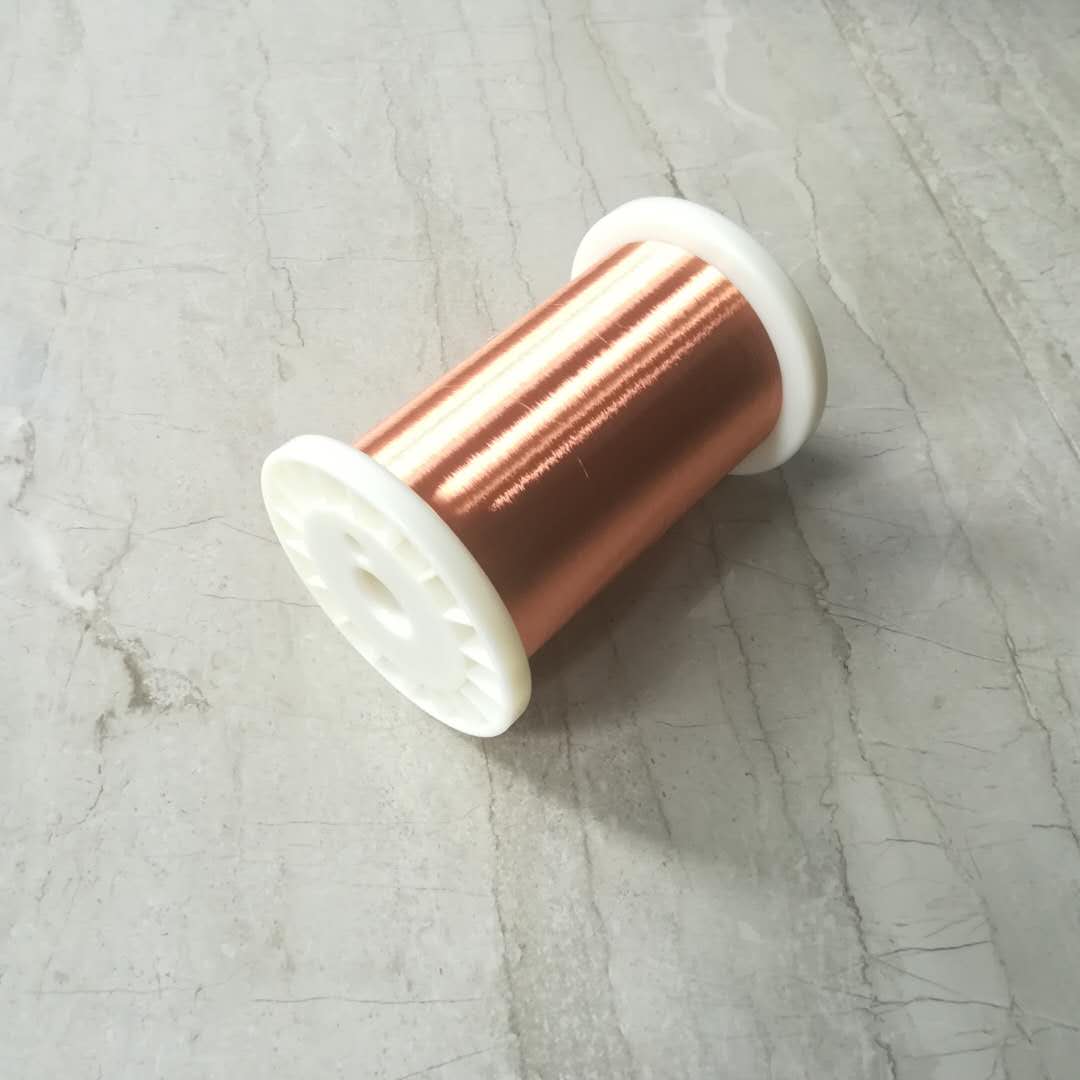

ENAMELED INSULATED WINDING WIRE MAGNET WIRE NORMAL COLOR
A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.
-
With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
-
Superior ''Q'' characteristic at high frequencies.
-
Excellent film adhension and flexibility.
-
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.
SPECIFICATION
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | | Elongation | Pin Hole | Electrical Resistance | |
| | mm | | | ≥ V | | ≥% | ≤Default/5m | Ω/km (20℃) | |
| | | | | Mandrel Method | Twisted Method | | | Min. | Max. |
| 0.012 | ---- | 0.013 | 0.015 | 50.000 | ---- | 5.00 | 10.00 | 142.64 | 157.65 |
| 0.013 | ---- | 0.015 | 0.017 | 70.000 | ---- | 5.00 | 10.00 | 118.41 | 133.98 |
| 0.014 | ---- | 0.016 | 0.018 | 70.000 | ---- | 5.00 | 10.00 | 102.64 | 120.45 |
| 0.015 | ---- | 0.017 | 0.020 | 80.000 | ---- | 5.00 | 10.00 | 89.83 | 104.41 |
| 0.016 | ---- | 0.018 | 0.021 | 90.000 | ---- | 5.00 | 8.00 | 74.67 | 97.56 |
| 0.017 | ---- | 0.019 | 0.022 | 90.000 | ---- | 5.00 | 8.00 | 66.60 | 85.75 |
| 0.018 | ---- | 0.020 | 0.023 | 100.000 | ---- | 5.00 | 8.00 | 59.77 | 75.95 |
| 0.019 | ---- | 0.021 | 0.024 | 100.000 | ---- | 5.00 | 8.00 | 53.95 | 67.75 |
| 0.020 | 0.001 | 0.022 | 0.024 | 100.000 | ---- | 8.00 | 8.00 | 51.83 | 60.81 |
| 0.050 | ±0.002 | 0.007 | 0.062 | 400.000 | 1200.00 | 12.00 | 5.00 | 7981.00 | 9528.00 |
| 0.055 | ±0.002 | 0.007 | 0.068 | 400.000 | 1200.00 | 12.00 | 5.00 | 6642.00 | 7815.00 |
| 0.060 | ±0.002 | 0.007 | 0.073 | 500.000 | 1200.00 | 14.00 | 5.00 | 5614.00 | 6526.00 |
| 0.065 | ±0.002 | 0.007 | 0.078 | 500.000 | 1200.00 | 14.00 | 5.00 | 4807.00 | 5531.00 |
| 0.070 | ±0.002 | 0.007 | 0.083 | 500.000 | 1200.00 | 15.00 | 5.00 | 4163.00 | 4747.00 |
| 0.075 | ±0.002 | 0.007 | 0.088 | 550.000 | 1200.00 | 15.00 | 5.00 | 3640.00 | 4119.00 |
| 0.080 | ±0.002 | 0.008 | 0.094 | 550.000 | 1200.00 | 16.00 | 5.00 | 3209.00 | 3608.00 |
| 0.085 | ±0.002 | 0.008 | 0.099 | 550.000 | 1200.00 | 16.00 | 5.00 | 2851.00 | 3187.00 |
| 0.090 | ±0.002 | 0.010 | 0.106 | 650.000 | 1200.00 | 16.00 | 5.00 | 2550.00 | 2835.00 |
| 0.095 | ±0.002 | 0.010 | 0.111 | 650.000 | 1200.00 | 17.00 | 5.00 | 2294.00 | 2538.00 |
| 0.100 | ±0.002 | 0.011 | 0.118 | 650.000 | 1200.00 | 17.00 | 5.00 | 2074.00 | 2286.00 |
| 0.110 | ±0.002 | 0.011 | 0.129 | ---- | 1300.00 | 17.00 | 5.00 | 1720.00 | 1882.00 |
| 0.120 | ±0.002 | 0.011 | 0.139 | ---- | 1500.00 | 17.00 | 5.00 | 1450.00 | 1577.00 |
| 0.130 | ±0.002 | 0.011 | 0.149 | ---- | 1500.00 | 18.00 | 5.00 | 1239.00 | 1340.00 |
| 0.140 | ±0.002 | 0.011 | 0.159 | ---- | 1600.00 | 19.00 | 5.00 | 1070.00 | 1153.00 |
| 0.150 | ±0.002 | 0.011 | 0.169 | ---- | 1700.00 | 20.00 | 5.00 | 934.10 | 1002.00 |
| 0.160 | ±0.002 | 0.012 | 0.180 | ---- | 1700.00 | 21.00 | 5.00 | 822.30 | 879.40 |
| 0.170 | ±0.003 | 0.013 | 0.192 | ---- | 2000.00 | 22.00 | 5.00 | 721.10 | 787.10 |
| 0.180 | ±0.003 | 0.014 | 0.204 | ---- | 2000.00 | 22.00 | 5.00 | 644.40 | 700.70 |
| 0.190 | ±0.003 | 0.014 | 0.214 | ---- | 2000.00 | 23.00 | 5.00 | 579.40 | 627.80 |
| 0.200 | ±0.003 | 0.014 | 0.224 | ---- | 2000.00 | 23.00 | 5.00 | 523.70 | 565.70 |
| 0.210 | ±0.003 | 0.014 | 0.234 | ---- | 2000.00 | 23.00 | 5.00 | 475.70 | 512.30 |
| 0.220 | ±0.003 | 0.014 | 0.245 | ---- | 2200.00 | 23.00 | 5.00 | 434.00 | 466.20 |
| 0.230 | ±0.003 | 0.016 | 0.257 | ---- | 2200.00 | 24.00 | 5.00 | 397.50 | 426.00 |
| 0.240 | ±0.003 | 0.016 | 0.267 | ---- | 2200.00 | 24.00 | 5.00 | 365.50 | 390.80 |
| 0.250 | ±0.003 | 0.016 | 0.277 | ---- | 2300.00 | 24.00 | 5.00 | 337.10 | 359.80 |
| 0.260 | ±0.004 | 0.018 | 0.287 | ---- | 2300.00 | 25.00 | 5.00 | 309.60 | 335.00 |
| 0.270 | ±0.004 | 0.018 | 0.297 | ---- | 2300.00 | 25.00 | 5.00 | 287.40 | 310.30 |
| 0.280 | ±0.004 | 0.022 | 0.313 | ---- | 2300.00 | 25.00 | 5.00 | 267.60 | 288.20 |
| 0.290 | ±0.004 | 0.022 | 0.323 | ---- | 2500.00 | 25.00 | 5.00 | 249.70 | 268.40 |
| 0.300 | ±0.004 | 0.022 | 0.334 | ---- | 2500.00 | 25.00 | 5.00 | 233.50 | 250.60 |
| 0.310 | ±0.004 | 0.022 | 0.344 | ---- | 2500.00 | 25.00 | 5.00 | 218.90 | 234.40 |
| 0.315 | ±0.004 | 0.022 | 0.349 | ---- | 2500.00 | 25.00 | 5.00 | 212.10 | 227.00 |
| 0.320 | ±0.004 | 0.023 | 0.355 | ---- | 2700.00 | 25.00 | 5.00 | 205.60 | 219.80 |
| 0.330 | ±0.004 | 0.023 | 0.365 | ---- | 2700.00 | 25.00 | 5.00 | 193.50 | 206.60 |
| 0.350 | ±0.004 | 0.023 | 0.385 | ---- | 2700.00 | 26.00 | 5.00 | 172.20 | 183.40 |
| 0.355 | ±0.004 | 0.023 | 0.390 | ---- | 2700.00 | 26.00 | 5.00 | 167.40 | 178.20 |
| 0.370 | ±0.004 | 0.024 | 0.406 | ---- | 2900.00 | 26.00 | 5.00 | 154.30 | 163.90 |
| 0.380 | ±0.004 | 0.024 | 0.416 | ---- | 2900.00 | 26.00 | 5.00 | 146.40 | 155.30 |
| 0.400 | ±0.004 | 0.025 | 0.437 | ---- | 2900.00 | 27.00 | 5.00 | 132.20 | 140.00 |
| 0.410 | ±0.004 | 0.025 | 0.447 | ---- | 2900.00 | 27.00 | 5.00 | 125.90 | 133.20 |
| 0.440 | ±0.004 | 0.025 | 0.477 | ---- | 2900.00 | 27.00 | 5.00 | 109.50 | 115.50 |
| 0.450 | ±0.004 | 0.025 | 0.487 | ---- | 2900.00 | 27.00 | 5.00 | 104.70 | 110.40 |
| 0.470 | ±0.004 | 0.026 | 0.508 | ---- | 3100.00 | 27.00 | 5.00 | 96.05 | 101.10 |
| 0.500 | ±0.004 | 0.026 | 0.539 | ---- | 3100.00 | 27.00 | 5.00 | 84.96 | 89.23 |
| 0.550 | ±0.004 | 0.027 | 0.590 | ---- | 3300.00 | 28.00 | 5.00 | 70.31 | 73.64 |
| 0.600 | ±0.005 | 0.027 | 0.640 | ---- | 3500.00 | 28.00 | 5.00 | 58.96 | 62.01 |
| 0.650 | ±0.005 | 0.027 | 0.690 | ---- | 3500.00 | 28.00 | 5.00 | 50.30 | 52.77 |
| 0.700 | ±0.005 | 0.029 | 0.742 | ---- | 3500.00 | 28.00 | 5.00 | 43.42 | 45.45 |
| 0.750 | ±0.005 | 0.030 | 0.794 | ---- | 3800.00 | 28.00 | 5.00 | 37.86 | 39.55 |
| 0.800 | ±0.005 | 0.032 | 0.846 | ---- | 3800.00 | 28.00 | 5.00 | 33.30 | 34.73 |
Tianjin Ruiyuan Electric Material Co,.Ltd
RUIYUAN was established in 2002, located in Tianjin City,the second
largest port city in China.We have been focusing on different kinds
of high quality wires: enameled round copper wire, rectangular
enameled copper triple insulated wire, silk covered Litz wire,
bonding wire and special enameled wire for 21 years.Ruiyuan is one
of the pioneers in producing micro thin enameled wires below 0.03mm
in China. Our R & D team has 20 years of market experience. In
2019, our finest diameter is 0.011mm, and mass production has been
achieved. All of our products are UL, RoHS certified, in line with
industry standards IEC60317, JIS C 3202, NEMA, NW82.
