0.015mm Self Bonding Enamelled Copper Winding Wire Ultra fine copper wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.015mm
Certification :	ISO9001/ISO14001 /UL/SGS
Price :	Negotiation
Payment Terms :	T/T,Negotiation
Supply Ability :	50 tons per month
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

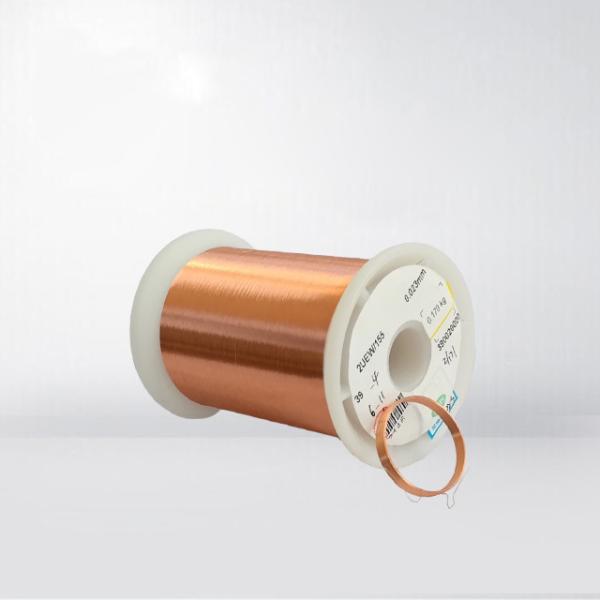

0.015mm Self Bonding Enamelled Copper Winding Wire Ultra fine copper wire

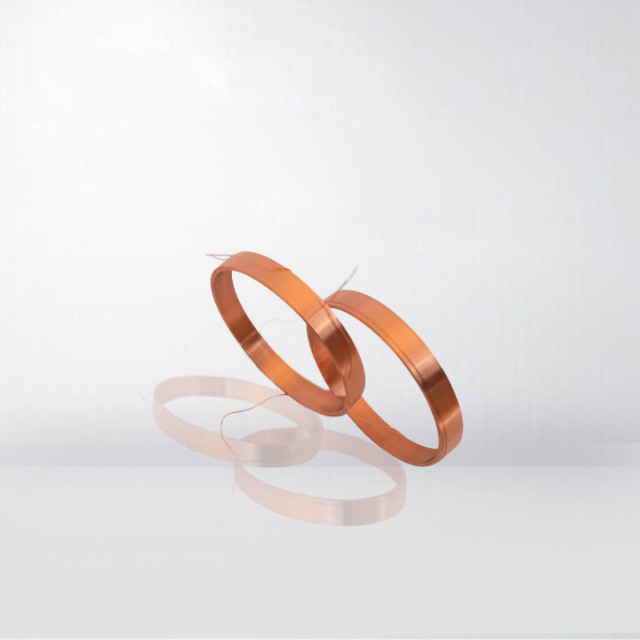

0.016mm ultra fine copper wire is our advantage. Self bonding wire is a special type of enameled wrie with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing,or impregnation may be eliminated.

Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.

0.015mm Self Bonding Enamelled Copper Winding Wire Ultra fine copper wire

Conductor		Insulation Layer			Self-bonding layer			Breakdown voltage	(Ω/m)
Nor	Tol.(mm)	Min	Overall Dia.		Min.	Overall Dia.		(V)	(20℃)
(mm)		(mm)	Center.	Max.	(mm)	Center.	Max.		Min	Max
			(mm)	(mm)		(mm)	(mm)		Min	Max
0.016	0/	0.002	0.019	0.02	0.001	0.021	0.022	150	84.3	91.38
0.017	-0.0005		0.02	0.021		0.022	0.023		74.67	80.64
0.018			0.021	0.022		0.023	0.024		66.61	71.68
0.019			0.022	0.023		0.024	0.025		59.78	64.14
0.020			0.023	0.024		0.025	0.026	220	53.95	57.73
0.021		0.003	0.025	0.026		0.027	0.028		48.94	52.24
0.022			0.026	0.027		0.028	0.029		44.59	47.49
0.023			0.027	0.028		0.029	0.03		40.79	43.37
0.024			0.028	0.029		0.03	0.031		37.47	39.75
0.025			0.029	0.03	0.002	0.032	0.033		34.53	36.57
0.026			0.03	0.031		0.033	0.034		31.92	33.76
0.027			0.031	0.032		0.034	0.035		29.6	31.26
0.028	±0.0005		0.032	0.033		0.035	0.036		26.57	29.02
0.029			0.033	0.034		0.036	0.037		24.8	27.02
0.030			0.034	0.035	0.003	0.037	0.039		23.2	25.22
0.032			0.036	0.037		0.039	0.041		20.43	22.12
0.035			0.039	0.04		0.043	0.045		17.12	18.44
0.038			0.042	0.043		0.046	0.048		14.56	15.61
0.040			0.044	0.045		0.048	0.05		13.16	14.07
0.042			0.046	0.047		0.05	0.052		11.95	12.74
0.045			0.049	0.05		0.053	0.055	300	10.42	11.08
0.048			0.052	0.053		0.057	0.059		9.174	9.729
0.050			0.054	0.056		0.059	0.061		8.462	8.958
