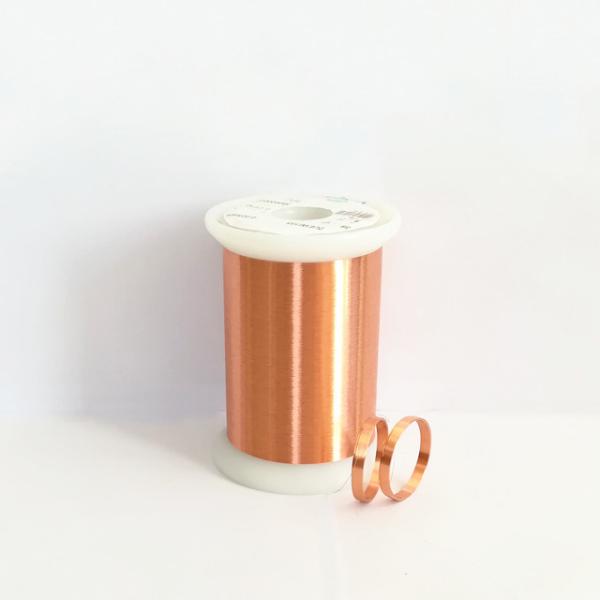

UEW Solderable Enameled Copper Wire / Round Self Bonding Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	UEW
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation, T/T, L/C
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

UEW Solderable Enameled Copper Wire / Round Self Bonding Wire

UEW Solderable Enameled Copper Wire / Round Self Bonding Wire

Enameled copper wire, also called "magnet wire," is widely used all over the world in electrical equipment.. The difference between the enameled copper wire and regular wire is in the insulation surrounding the wire. Normal copper wire is insulated by wrapping it in thick rubber. Enameled copper wire is insulated by coating it with enamel. It is primarily used in three types of applications. It is used, in transformers to transform one kind of electrical energy into other kinds. It is used in motors to transform electrical energy into mechanical energy. It is also used in generators to transform mechanical energy into electrical energy.

FEATURES AND BENEFITS

Higher thermal property
Good resistance to refrigerant and freon
Suitable for windings that are subjected to constantly high temperature and mechanical stress
Good chemical resistanceFE

APPLICATION

Micro - motor and Transformers,
Flyback transformers,
Electronic compoments,
Step motors

UEW Solderable Enameled Copper Wire / Round Self Bonding Wire

SPECIFICATION

Dimensions				Minimum	Failing load in resistance-to-			Maximun	Minimum
				dielectric	abrasion test N (gf)			conductor	elongation
Conductor		Minimum	Maximum	breakdown				resistance per	%
		film	overall	voltage				unit length
		thickness	thickness	V.	Average value		Lowest value	W / km (20^oC)
Diameter	Tolerance	mm.	mm.		(min.)		(min.)
mm.	mm.
0.02	+ 0.002	0.002	0.028	40	1.6 {163}-		1.3 {133}	69850	3
0.025			0.034	60				42780
									5
0.03			0.04	70				28870
0.04			0.052	100				15670
									7
0.05	+ 0.003	0.003	0.064	700				10240	10
0.06			0.075					6966
0.07			0.085					4990
0.08			0.097					3778
0.09			0.107					2959
0.1			0.118					2381
									15
0.11			0.128					1957
0.12			0.139					1636
		0.004		850
0.13			0.149					1389
0.14			0.159					1193
0.15			0.169					1037
0.16			0.181					908.8
		0.005
0.17			0.191					803.2
0.18			0.202					715
				1000
0.19			0.212					640.6
0.2			0.222					577.2
0.21			0.232					522.8

0.22	+ 0.004		0.243					480.1
0.23			0.255					438.6
		0.006
0.24			0.265					402.2
0.25			0.275					370.2
0.26			0.285					341.8
0.27			0.295					316.6
0.28			0.305					294.1
0.29			0.315					273.9
									20
0.3	+ 0.005	0.007	0.327	1400	1.9 {194}		1.6 {163}	254
0.32			0.347					222.8
0.35			0.377					185.7
0.37			0.397					165.9
0.4			0.429					141.7
					2.0 {204}
0.45	+ 0.006		0.479				1.7 {173}	112.1
0.5		0.008	0.531					89.95
				1450	2.3	{235}	2.0 {204}
0.55			0.581		2.4 (245}			74.18
0.6	+ 0.008		0.632					62.64
