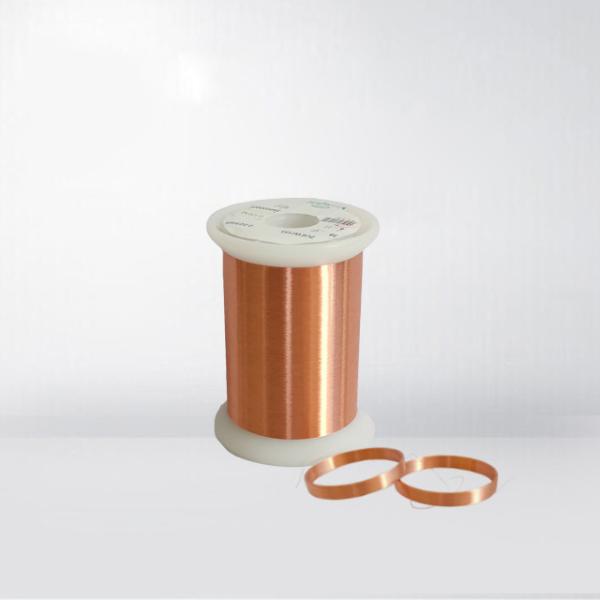

0.30mm Diameter Self Bonding Wire For Stator Windings

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	0.30mm
Certification :	ISO9001/ISO14001/UL /SGS
Price :	Negotiation
Payment Terms :	T/T,Negotiation
Supply Ability :	50 tons per month
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

0.30mm Diameter Self Bonding Wire For Stator Windings

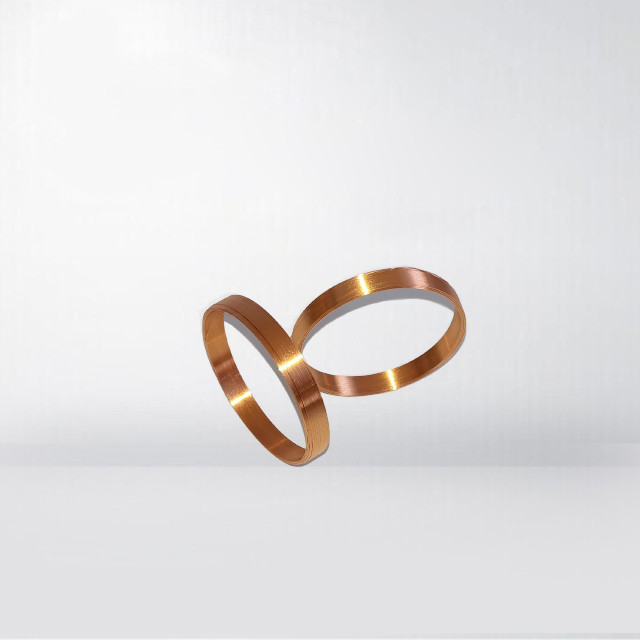

A special type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under Enamelled Wire Types, with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.

Self bonding wire can be supplied with different conductor materials such as selfbonding copper clad aluminum wire, selfbonding aluminum wire etc.

0.30mm Diameter Self Bonding Wire For Stator Windings

Size	Size	Conductor	Insulation Thickness	Bonding Layer thickness	Overall Dia	DCR(at 20℃)	Breakdown voltage (V)	Elongation %	Bonding Strength(g)
(mm)	Dia mm	Tolerance (mm)	(mm)	(mm)	(mm)	[Ω/m]
0.012	0.012	According to DCR	Min0.001	Min0.0005	0.014mm	128.85-179.96	Min100	Min3.0	Min 1
0.015	0.015	According to DCR	Min0.001	Min0.0005	0.020mm	85.06-111.10	Min120	Min5.0	Min 1
0.02	0.02	±0.001	Min0.001	Min0.002	Max0.0260	54.0~57.0	Min135	Min6.0	Min 1
0.025	0.025	±0.001	Min0.002	Min0.002	Max0.0320	34.0~37.0	Min165	Min6.0	Min 2
0.028	0.028	±0.001	Min0.002	Min0.002	Max0.0360	26.9~28.4	Min190	Min6.0	Min 2
0.03	0.03	±0.001	Min0.002	Min0.002	Max0.0390	23.7~24.9	Min210	Min6.0	Min 2
0.032	0.032	±0.001	Min0.002	Min0.002	Max0.0400	21.5~22.5	Min210	Min6.0	Min 2
0.034	0.034	±0.001	Min0.002	Min0.002	Max0.0430	18.1~18.9	Min250	Min6.0	Min 3
0.035[D]	0.035	±0.001	Min0.002	Min0.002	Max0.0460	17.5~18.6	Min250	Min6.0	Min 3
0.037[D]	0.037	±0.001	Min0.002	Min0.002	Max0.0480	16.2~16.8	Min275	Min6.0	Min 3
0.038[D]	0.038	±0.001	Min0.002	Min0.002	Max0.0490	15.5~16.0	Min275	Min7.0	Min 3
0.039	0.039	±0.001	Min0.002	Min0.002	Max0.049	14.6~15.2	Min100	Min7.0	Min 3
0.040[D]	0.04	±0.001	Min0.002	Min0.002	Max0.050	13.0~14.5	Min100	Min7.0	Min 3
0.041	0.041	±0.001	Min0.003	Min0.003	Max0.0500	12.9~13.6	Min275	Min7.0	Min 3
0.042[D]	0.042	±0.001	Min0.003	Min0.003	Max0.0530	12.2~13.0	Min275	Min7.0	Min 3
0.043[D]	0.043	±0.001	Min0.003	Min0.003	Max0.0520	11.4~12.5	Min275	Min7.0	Min 3
0.044［D］	0.044	±0.001	Min0.003	Min0.003	Max0.0540	11.4～12.5	Min275	Min7.0	Min 3
0.045［D］	0.045	±0.001	Min0.001	Min0.002	Max0.055	10.3～11.4	Min700	Min10.0	Min 3
0.046	0.046	±0.001	Min0.003	Min0.003	Max0.0550	9.90～10.3	Min360	Min10.0	Min 3
0.047［D］	0.047	±0.001	Min0.001	Min0.002	Max0.057	9.52～10.4	Min700	Min10.0	Min 3
0.048［D］	0.048	±0.001	Min0.002	Min0.003	Max0.059	9.14～9.94	Min700	Min10.0	Min 5
0.049	0.049	±0.001	Min0.002	Min0.003	Max0.0580	8.90～9.40	Min700	Min10.0	Min 5
0.050［D］	0.05	±0.002	Min0.002	Min0.003	Max0.061	8.11～9.53	Min700	Min10.0	Min 5
0.052［D］	0.052	±0.002	Min0.003	Min0.003	Max0.064	8.00～8.50	Min700	Min10.0	Min 5
0.053［D］	0.053	±0.002	Min0.002	Min0.003	Max0.064	8.25～8.44	Min700	Min10.0	Min 5
0.055［D］	0.055	±0.002	Min0.002	Min0.003	Max0.066	6.75～7.83	Min700	Min10.0	Min 5
0.057［D］	0.057	±0.002	Min0.002	Min0.002	Max0.070	6.40～7.00	Min700	Min12.0	Min 5
0.058［D］	0.058	±0.002	Min0.002	Min0.002	Max0.071	6.50～6.70	Min700	Min12.0	Min 5
0.060［D］	0.06	±0.002	Min0.002	Min0.003	Max0.071	5.71～6.53	Min700	Min12.0	Min 5
0.065	0.065	±0.002	Min0.003	Min0.003	Max0.078	4.85～5.20	Min700	Min12.0	Min 5
0.068	0.068	±0.002	Min0.003	Min0.003	Max0.083	4.60～4.80	Min700	Min12.0	Min 5
0.07	0.07	±0.002	Min0.003	Min0.003	Max0.086	4.30～4.50	Min700	Min12.0	Min 5
0.075	75	±0.002	Min0.004	Min0.004	Max0.086	3.77～3.97	Min700	Min14.0	Min 8
