Enameled Copper Voice Coils Wire

Ask Lasest Price
Brand Name :	Ruiyuan
Model Number :	0.012-0.08mm
Certification :	IEC/NEMA/JIS/RoHS/ISO
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	200 Ton/Tons per Month
Delivery Time :	2-15 days

Add to Cart

Product Details
Company Profile

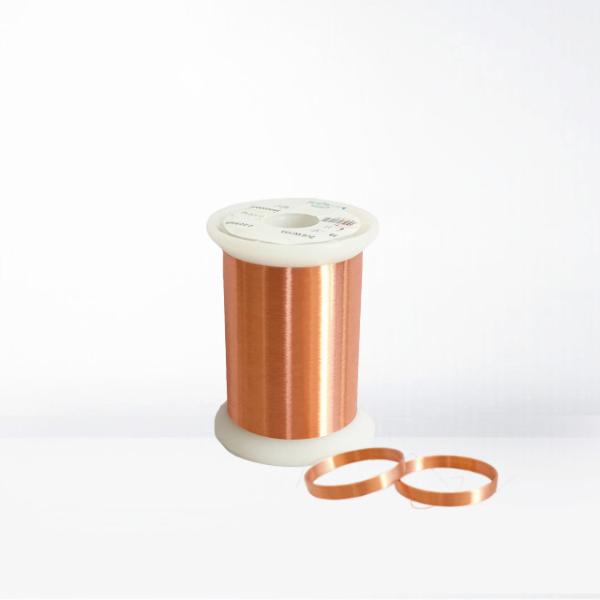

Enameled Copper Voice Coils Wire

Enameled Copper Voice Coils Wire

The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.The type of insulating film: The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.

Features:

1. Temperature Rate: 155/180/220℃

2. Twotypes of self-bonding materials and can be processed with either alcohol,heat or electric methods. The alcohol must be removed from the coil to ensure the long term insulation degradatoin does not occur.

The wire has unifor lubrication and good winding property

3. We also provider solderable wires to save process time for customers

4. Size range:0.015-0.08mm

Nominal Diameter mm	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage ≥ V
			Mandrel Method	Twisted Method
0.012	0.013	0.015	50.000	----
0.013	0.015	0.017	70.000	----
0.014	0.016	0.018	70.000	----
0.015	0.017	0.020	80.000	----
0.016	0.018	0.021	90.000	----
0.017	0.019	0.022	90.000	----
0.018	0.020	0.023	100.000	----
0.019	0.021	0.024	100.000	----
0.020	0.022	0.024	100.000	----
0.050	0.007	0.062	400.000	1200.00
0.055	0.007	0.068	400.000	1200.00
0.060	0.007	0.073	500.000	1200.00
0.100	0.011	0.118	650.000	1200.00
0.110	0.011	0.129	----	1300.00
0.120	0.011	0.139	----	1500.00
0.140	0.011	0.159	----	1600.00
0.150	0.011	0.169	----	1700.00
0.160	0.012	0.180	----	1700.00
0.180	0.014	0.204	----	2000.00
0.200	0.014	0.224	----	2000.00
0.250	0.016	0.277	----	2300.00
0.260	0.018	0.287	----	2300.00
0.280	0.022	0.313	----	2300.00
0.300	0.022	0.334	----	2500.00
0.320	0.023	0.355	----	2700.00
0.350	0.023	0.385	----	2700.00
0.380	0.024	0.416	----	2900.00
0.400	0.025	0.437	----	2900.00
0.450	0.025	0.487	----	2900.00
0.500	0.026	0.539	----	3100.00
0.550	0.027	0.590	----	3300.00
0.600	0.027	0.640	----	3500.00
0.650	0.027	0.690	----	3500.00
0.700	0.029	0.742	----	3500.00
0.800	0.032	0.846	----	3800.00
