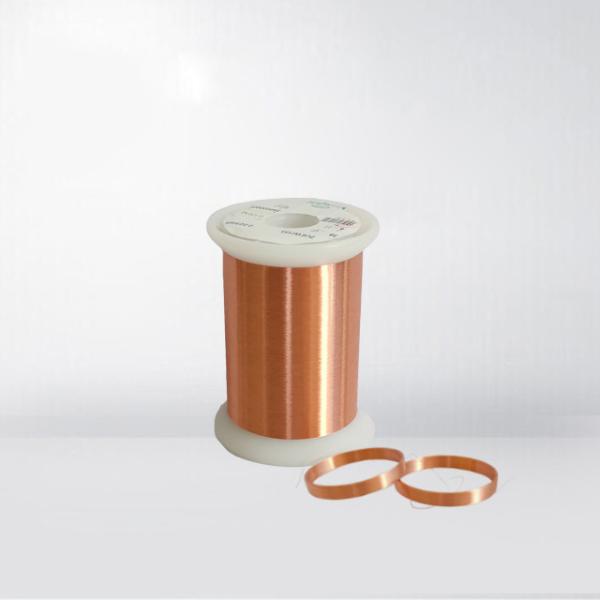

    AWG 20 - 26 Enamelled Copper Wire Magnet Wire For Voice Coils

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : 0.4-0.5mm
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation
    Delivery Time : 2-15 workding days
    Supply Ability : 100 Ton/Tons per Month
    • Product Details
    • Company Profile

    AWG 20 - 26 Enamelled Copper Wire Magnet Wire For Voice Coils

    AWG 20-26 ENAMELED COPPER WIRE MAGNET WIRE FOR VOICE COILS
    Enameled copper wire is a wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.
    FEATURES AND BENEFITS:.

    • High resistance to heat shock.

    • High temperature.

    • Good performance in cut-through.

    • Suitable for high-speed automated routing.

    • Able to be direct weld, with no pinhole.

    • Resistive to high frequency, wearing, refrigerants and electronics corona.

    • High breakdown voltage, small dielectric loss angle.

    • Environment-friendly.

    EXECUTIVE STANDARDS:IEC, JIS and NEMA.
    CERTIFICATES:ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met
    APPLICATIONS:

    • Power Electronics

    • Drive engineering

    • Medical technology

    • Railway Engineering

    • Automation

    Nominal Diameter mmToleranceMin. Increase of DiameterMax. Overall DiameterBreakdown VoltageElongationPin HoleElectrical Resistance
    mm≥ V≥%≤Default/5mΩ/km (20℃)
    Mandrel MethodTwisted MethodMin.Max.
    0.4±0.0040.0250.437----2900275132.2140
    0.41±0.0040.0250.447----2900275125.9133.2
    0.44±0.0040.0250.477----2900275109.5115.5
    0.45±0.0040.0250.487----2900275104.7110.4
    0.47±0.0040.0260.508----310027596.05101.1
    0.5±0.0040.0260.539----310027584.9689.23


    AWG 20 - 26 Enamelled Copper Wire Magnet Wire For Voice Coils
    AWG 20 - 26 Enamelled Copper Wire Magnet Wire For Voice Coils
