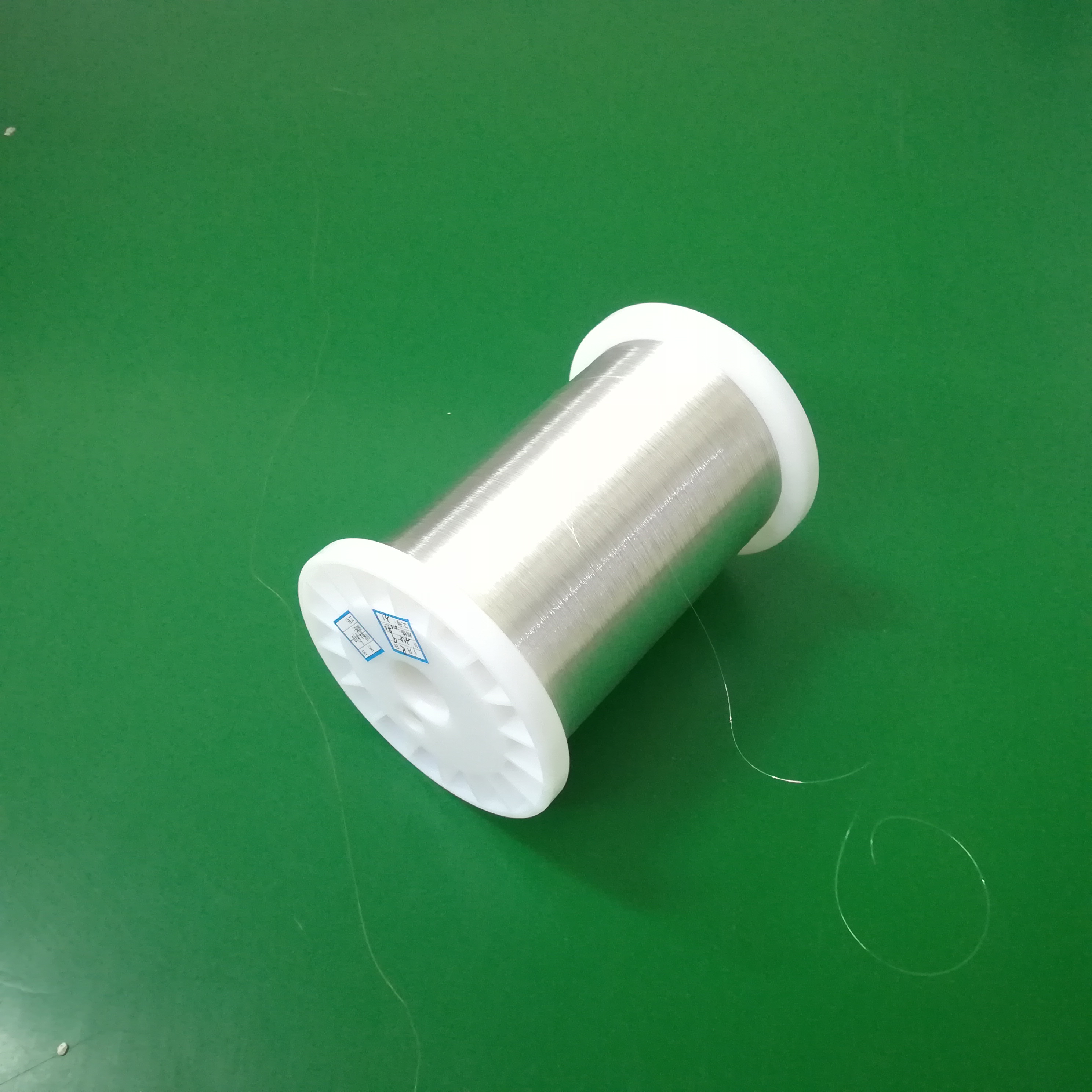

Silver Plated Ultra Fine Copper Wire For Voice Coil IEC / JIC / NEMA Standard

SILVER PLATED ULTRA FINE COPPER WIRE FOR VOICE COIL IEC JIC NEMA STANDARD

Silver copper alloy wire is an enamled wire mande of copper alloy conductor for special applications. such as special requirment of high conductivity, mechanical property, bending strength reisstance. The alloy includes copper silver alloy, copper zinc alloy, copper tin alloy and copper nickel alloy.

FEATURES

Copper silver Alloy: HIgh tensile strength, good bending strenth, high conductivity(>93%IACS)
Copper Zinc Alloy: Good mechanical property, corrosion resistance, lowe conductivity, excellent bending strength
Copper Tin Alloy: Excellent mechanicla and chemical property, extra-high corrosion resistance, good solderability
Copper Nickel Alloy: High conductivity, high tensile strength, high bending strength

APPLICATION

Copper Silver Alloy:HIgh end speaker coils, audio connection wire application. Silver Content:0.1-10%Copper Zin Alloy: Gas nozzle, electro discharge machine, heating device. Zinc Content:10-30%
Copper Tin Alloy: Heating components application. Tin content:0.15%-6%
Copper Nickel Alloy: Heating components, resistance wire. Nickel content:2%-23%

Properties of various alloy wires
Property	Copper	Copper Silver Alloy	Copper Tin Alloy	Copper Zinc Alloy	Copper Nickel Alloy
Density(g/cm2)	8.9	8.9	8.8-8.9	8.3-837	8.9
Conductivity(IACS/%)	100	88-97	78-93	27-44	6-34
Tensile Strength(MPa)	220-2700	300-450	330-470	390-450	370-550
Resistance Temp.Coefficient(IE-6/K)	3900-4000	3100-3600	3200-3500	1300-1500	200-150
