Super Thin Copper Litz Wire 0.05mm High Voltage Pi Film Taped

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Super Thin Copper Litz Wire 0.05mm High Voltage Pi Film Taped from wholesalers

    Buy cheap Super Thin Copper Litz Wire 0.05mm High Voltage Pi Film Taped from wholesalers
    • Buy cheap Super Thin Copper Litz Wire 0.05mm High Voltage Pi Film Taped from wholesalers

    Super Thin Copper Litz Wire 0.05mm High Voltage Pi Film Taped

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : Copper litz wire
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

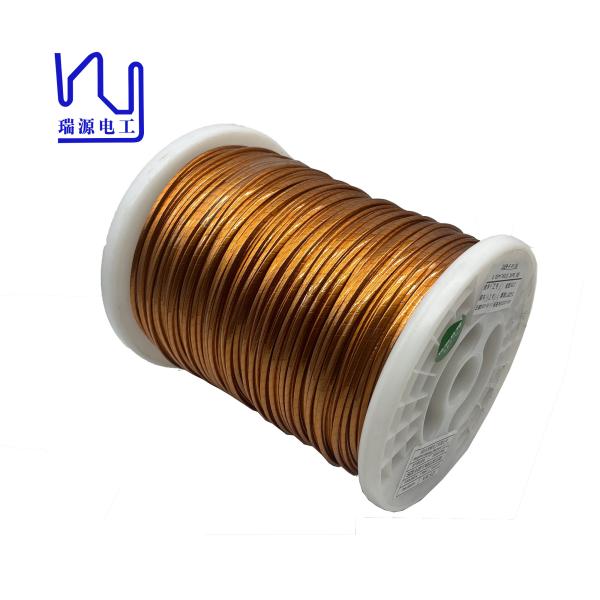

    Super Thin Copper Litz Wire 0.05mm High Voltage Pi Film Taped

    Custom super thin 0.05mm high voltage PI film taped copper litz wire
    Film-covered wire is a wire material commonly used in electronic products. Its interior is enamelled copper stranded wire, and the outer layer is wrapped with PI film or PET film.


    This wire is mainly designed to meet the requirements of modern electronic products for miniaturization, high performance, and high reliability. It is widely used in communications, computers, mobile phones, tablet computers, digital products and other fields.


    The biggest feature of film-covered wire is "high precision, stable quality, and long service life", and these advantages are exactly what electronic products need. At the same time, in high-frequency applications, the anti-interference performance of film-covered wires is also superior to other ordinary wires.

    Characteristics

    Technical requests

    Test Results

    Outer diameter of single wire(mm)

    0.056-0.069

    0.058-0.062

    Conductor diameter(mm)

    0.05±0.003

    0.048-0.050

    Width(mm)

    3.3-3.48

    Thickness(mm)

    2.14-2.26

    No. Of strands

    1740

    1740

    Pitch(mm)

    60±3

    Maximum Resistance(Ω/m 20℃)

    0.005885

    0.005335

    Dielectric strength(V)

    6000

    13500

    Solderability

    390±5℃, 12s

    Tape(overlap %)

    Min.50

    54


    Name

    Custom super thin 0.05mm high voltage PI film taped copper litz wire

    Key word

    Mylar litz wire

    Insulationh

    Enamel, polyster cover

    Thermal rating

    155degree

    Diameter of the enameled copper wire

    0.05mm

    Number of strands

    1740

    Type

    Custom super thin 0.05mm high voltage PI film taped copper litz wire

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
