0.4mm *45 Mylar Litz Wire High Voltage Profiled Copper Conductor

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Copper litz wire
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

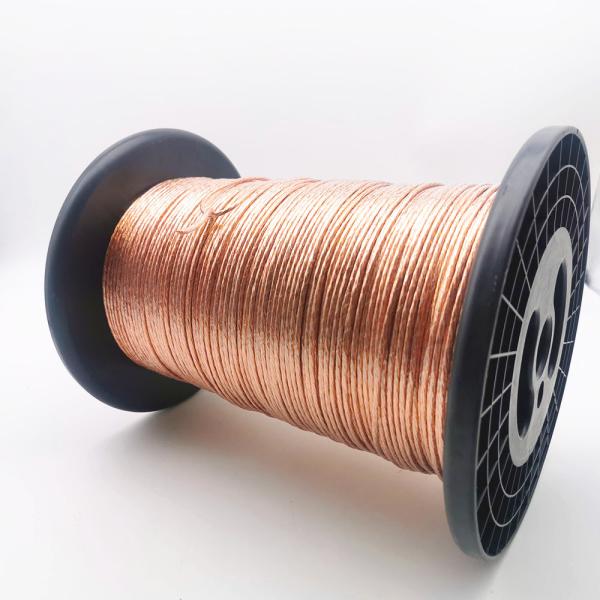

0.4mm *45 Mylar Litz Wire High Voltage Profiled Copper Conductor

0.4mm *45 Mylar Litz Wire High Voltage Profiled Copper Litz Wire

We provide high quality profiled copper litz wire, single wire size range from 0.03mm-0.8mm, mainly used for high frequency inductors, transformers, frequency converters, fuel cells, motors, communications and IT equipment, ultrasonic equipment, sonar equipment, televisions, radio equipment, induction heating, etc.er wire internal insulation purposes

Test report: 0.4mm x 15 x 3(5 x2)	Standard	Test result
Conductor diameter(mm)	0.40±0.005	0.396-0.400
Single wire diameter(mm)	0.417-0.439	0.427-0.432
Width(mm)	5	5.02-5.18
Thickness(mm)	2	1.97-2.07
No. of strand	45	45
Max resistance(Ω/m at20℃)	Max. 0.003149	0.00308
Mini breakdown voltage(V)	Min.6000	11800

Name	PET Polyster High Voltage Stranded Copper Wire Taped Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	95
Type	PET Mylar Litz Wire 120 Degree High Voltage Stranded Copper Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.4mm *45 Mylar Litz Wire High Voltage Profiled Copper Conductor
