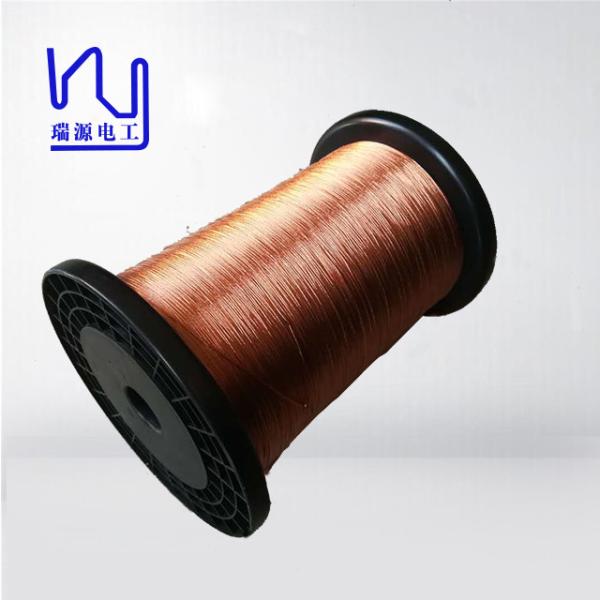

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	Copper litz wire
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Payment Terms :	Negotiation
Supply Ability :	Satisfy your demand
Delivery Time :	2-15 workding days

Add to Cart

Product Details
Company Profile

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding

2UEWF 0.06mm*7 Stranded Copper litz wire

This design balances the flux linkage and reactance of the individual strands so that the current is evenly distributed throughout the conductor. Then, the resistance ratios (AC vs. DC) tend toconverge.

Custom stranded wire requires the engineer using the stranded wire knows the operating frequency and RMS current required for the application. Since the main benefit of Litz conductors is to reduce AC losses, the primary consideration for any Litz design is the operating frequency. Operating frequency not only affects the actual Litz structure, but is also used to determine individual wire gauges.

Name	2UEWF 0.06mm*7 Stranded Copper litz wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	30
Key word	2UEWF 0.06mm*7 Stranded Copper litz wire

single wire diameter (mm)	0.06mm
number of strands	7
MaximumOutside Diameter(mm)	0.25mm
Insulation class	class130/class155/class180
Film type	Polyurethane/Polyurethane composite paint
Film thickness	0UEW/1UEW/2UEW/3UEW
Twisted	Single twist/multiple twist
Pressure resistance	＞950V
Stranding direction	Forward/ Reverse
lay length	14±2
Color	copper/red
Reel Specifications	PT-4/PT-10/PT-15

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
