Rectangular Enameled Copper Wire For High Frequency Transformers

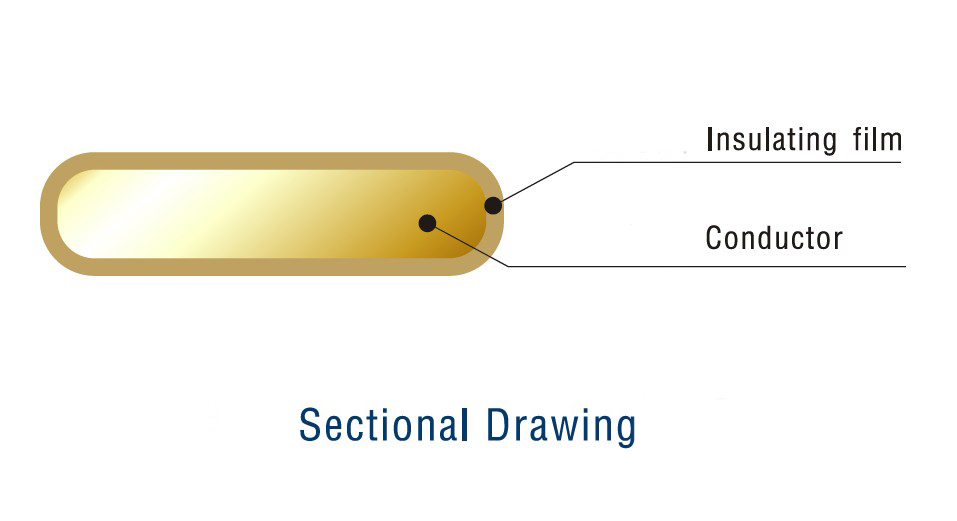

Customer has requested that to be more efficient in using space, high electricity and density in the developing stage of the high spec and quality coil. We, Unimac Japan have developed this product successfully by using the above the requirements. The property of our flat magnet wire outweigh the round wire which is from 0.07mm to 1.7mm in a cross section, and the flat wire's conductor was insulated accordingly. It will give you a wide-ranged of possibility on your products. In addition, it will contribute to the minimization of volume, weight reduction and enhance the electrical efficiency on our product.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
APPLICATIONS
1. SMD coils: TV,PC ECU
2. Small SMD coil:
3. Transfomer:HID hed-lamp

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 21 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
