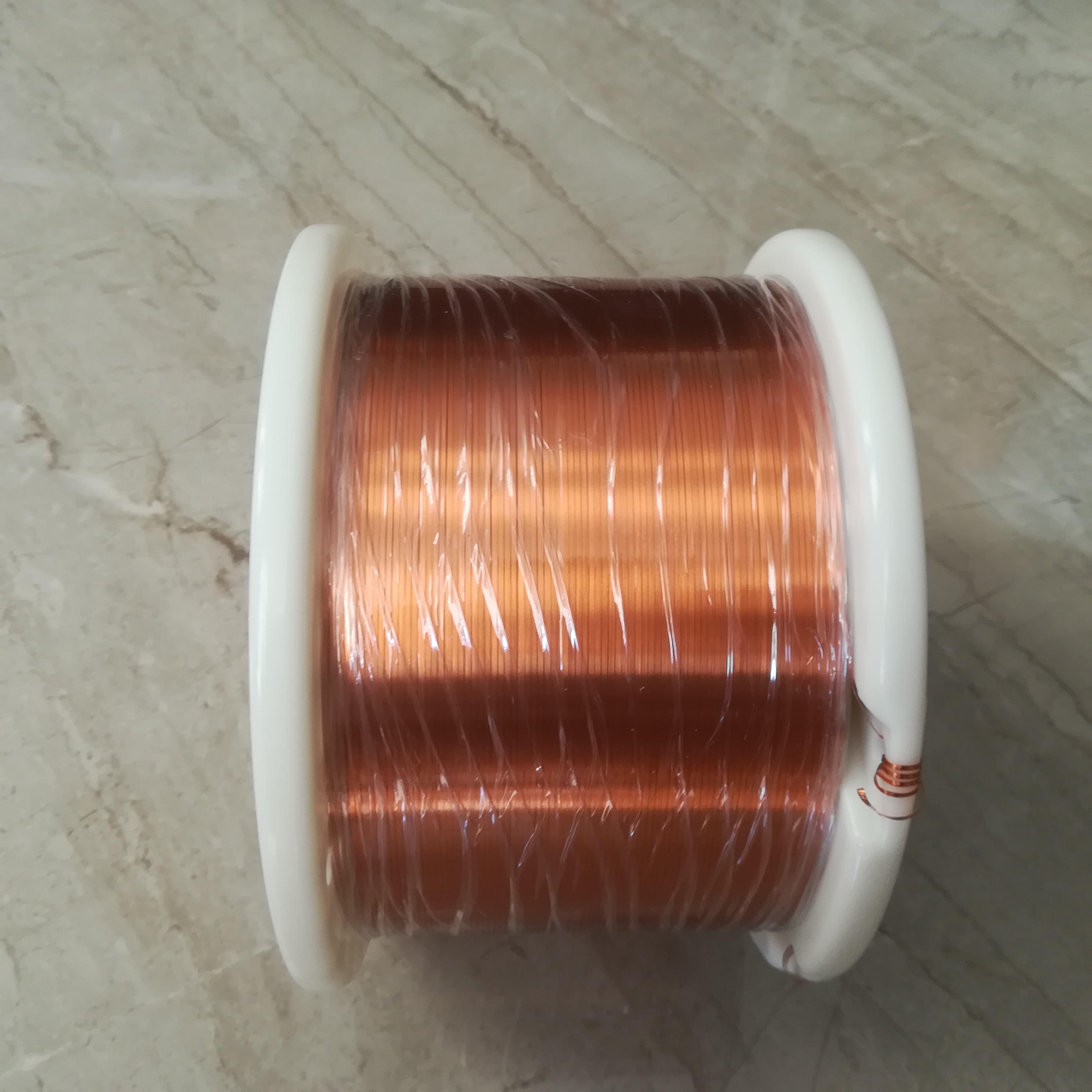

    Class 220 AIW 0.4x4mm Self Bonding Wire Enamelled Rectangular Copper Wire For Winding

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : 0.4*4mm
    Certification : IEC/NEMA/JIS/RoHS/ISO/UL
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 Days
    • Product Details
    • Company Profile

    Class 220 AIW 0.4x4mm Self Bonding Wire Enamelled Rectangular Copper Wire For Winding

    CLASS 220 AIW 0.4x4MM SELF BONDING ENAMEL COATING FLAT COPPER WIER

    Rectuangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Today most popular Notebook computers, wireless charger...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled copper wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Copper Wire" for the market.


    APPLICATION

    • Notebook coil.

    • Coils of printer.

    • Motors of CD driver.

    • Transformer.

    • wireless charger

    0.12x1.2 -2.jpg


    Item

    Characteristics

    Standard

    Test Result

    1

    Appearance

    Smooth Equality

    Smooth Equality

    2

    Conductor Diameter

    Width

    4

    ±0.060

    4.023

    Thickness

    0.4

    ±0.009

    0.4

    3

    Thickness of Insulation

    Width

    0.02

    0.037

    Thickness

    0.03

    0.046

    4

    Overall Diameter

    Width

    4.1

    4.06

    (Including bonding layer)

    Thickness

    0.45

    0.446

    5

    Pinhole

    Max ≤3hole/m

    0

    6

    Elongation

    Min ≥30 %

    41%

    7

    Flexibility and Adherence

    No crack

    No crack

    8

    Conductor Resistance (Ω/km at 20℃)

    Max 11.44

    10.27

    9

    Breakdown Voltage

    Min 0.70kv

    1.9

    10

    Heat shock

    No Crack

    No Crack


    Conclution


    Pass
