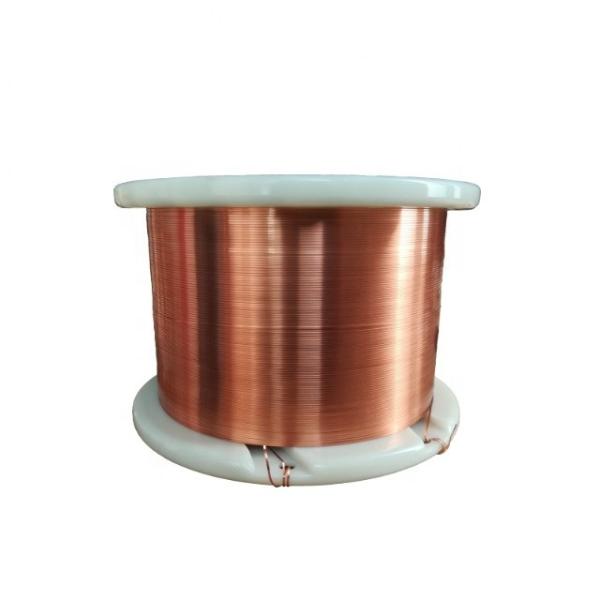

Class 180 Polyurethane Coated Wire / 0.3 * 3.0 Mm Flat Copper Wire

Ask Lasest Price
Brand Name :	Rvyuan
Model Number :	*0.33.0mm**
Certification :	ISO9001/ISO14001/UL/SGS
Price :	Negotiation
Supply Ability :	Satisfy your demand
Payment Terms :	Negotiation
Delivery Time :	2-5days

Add to Cart

Product Details
Company Profile

Class 180 Polyurethane Coated Wire / 0.3 * 3.0 Mm Flat Copper Wire

CLASS 180 POLYURETHANE COATED WIRE/0.3*3.0MM FLAT COPPER WIRE

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

Class 180 Polyurethane Coated Wire / 0.3 * 3.0 Mm Flat Copper Wire

SPECIFICATION

Item	Characteristics	Standard			Test Result
1	Appearance	Smooth Equality			Smooth Equality
2	Conductor Diameter	Width	3	±0.006	2.97
		Thickness	0.3	±0.009	0.291
3	Thickness Insulation	Width	≥0.020		0.081
		Thickness	≥0.030		0.056
4	Overall Diameter	Width	≤3.10		3.051
		Thickness	≤0.35		0.347
5	Pinhole	≤3hole/m			0
6	Elongation	≥30 %			42%
7	Flexibility and Adherence	No crack			No crack
8	Conductor Resistance (Ω/km at 20℃)	≤21			19.73
9	Breakdown Voltage	≥0.7KV			1.9KV
10	Heat shock	No Crack			No Crack
	Conclution				Pass
