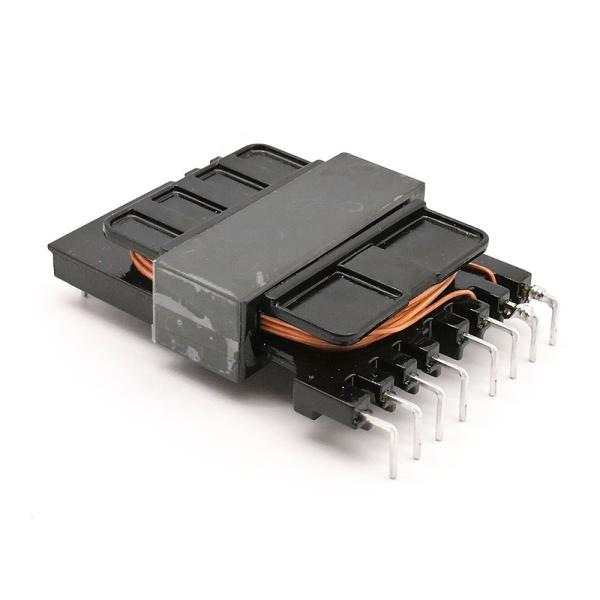

    EE42 230V To 12V 120V AC Hf Transformer For Television

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : EE4213
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Negotiation
    Delivery Time : 15days
    • Product Details
    • Company Profile

    EE42 230V To 12V 120V AC Hf Transformer For Television

    EE 230V To 12V 120V AC High Frequency Transformer Electric Transformer For Television

    • Product name: EE4213 Transformer
    • Components:Ferrite core, wire,Bobbin,Insulations etc
    • Wire:Enameled copper wire,Triple insulated wire etc
    • Shape Types:Vertical,Horizontal,with/without base,Smd etc
    • Working Frequency:1KHz-100MHz
    • Inductance Range:Unlimited
    • DCR Range:Depend on customers' request
    • Storage Temperature:-40℃ to +85℃
    • Working Temperature:-40℃ to +105℃
    • Storage Humidity:30% to 95%

    EE42 230V To 12V 120V AC Hf Transformer For Television

    NO.
    Application
    L(max)
    W(max)
    H(max)
    Pin
    Pin pitch
    Row pitch
    EE13
    Flyback transformer
    17.5
    18.5
    16.5
    5+2
    2.50/3.0
    13
    EE13
    Flyback transformer
    15.0
    24.0
    15.0
    5+2
    2.75/9.0
    17.4
    EE16
    Flyback transformer
    19.0
    17.0
    24.0
    6+4
    2.70/3.50
    12.2
    EE16
    Drive transformer
    18.0
    14.0
    18.0
    5+5
    3.25
    10.5
    EE16
    Flyback transformer
    18.0
    26.0
    19.0
    5+2
    3.0/4.0
    20
    EE19
    Flyback transformer
    21.0
    18.0
    24.0
    6+4
    2.70/3.50
    12
    EE22
    Drive transformer
    25.5
    27.5
    18.5
    6+6
    3.5
    17.5
    EE22
    Flyback transformer
    24.0
    22.0
    18.0
    8+8
    2.5
    16.0
    EE22
    Flyback transformer
    24.0
    19.0
    26.0
    5+5
    4
    10.3
    EE25
    Flyback transformer
    32.5
    23.0
    33.5
    9+9
    3
    14
    EE25
    Flyback transformer
    27.0
    29.0
    23.0
    5+5
    4
    22.5
    EE28
    Flyback transformer
    34.5
    24.5
    28.0
    8+7
    3/4/5/6/8
    18
    EE4213
    LLC transformer
    55
    45
    15.0
    5+8
    4.5
    42.5
    EE4313
    LLC transformer
    65.0
    39.5
    14.0
    6+8
    6.0/7.5/5.5
    60.5
    EE4214
    LLC transformer
    52.0
    43.5
    15.5
    4+8
    6.0/8.0/5.0
    48.8/52.85
    EE4224
    LLC transformer
    65
    45
    15.0
    5+8
    5
    57
    EE49
    LLC transformer
    71
    52
    16.5
    6+8
    6.0+7.0
    65.5
    EE53
    LLC transformer
    77
    55
    16.5
    6+8
    5.0+6.0
    74.4
    EE12
    High voltage transformer
    14.0
    16.5
    13.5
    6+3
    5.0/4.0/4.75
    9.4/11.4
    EE16
    High voltage transformer
    17.0
    17.0
    14.0
    4+2
    11.43/3.81
    12.7
    EE19
    High voltage transformer
    20.0
    22.0
    15.0
    4+2
    2.5/10
    14.3
    EE20
    High voltage transformer
    22.0
    22.0
    17.5
    7+3
    5.3/2.5/8.4
    12.8
