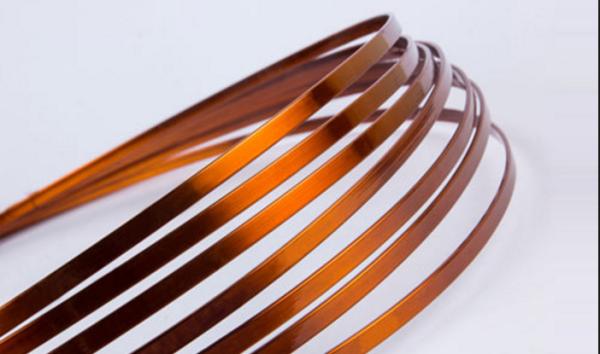

    Super Thin Flat Transformer Copper Wire Solderability 0.8 - 5.6mm High Solvent Resistance

    Ask Lasest Price
    Brand Name : Rvyuan
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : Negotiation, T/T, L/C
    Delivery Time : 2-15 workding days
    Supply Ability : Satisfy your demand
    Model Number : 0.8 - 5.6mm
    • Product Details
    • Company Profile

    Super Thin Flat Transformer Copper Wire Solderability 0.8 - 5.6mm High Solvent Resistance

    SUPER THIN FLAT TRANSFORMER COPPER WIRE SOLDERABILITY 0.8-5.6MM HIGH SOLVENT RESISTANCE

    Enamelled copper wire comes in many different diameters, and with several different kinds of enamel. The diameters vary from less than that of a hair, to about that of a child’s finger. Different standards exist for the wire diameter. A very common one is American Wire Gauge, shortened to AWG, which is used in much of the world. Britain has its own standard, and in many countries the wire is specified simply by its diameter in millimeters.

    FEATURES AND BENEFITS

    1) High flexibility of the enamel
    2) Good resistance to abrasion
    3) High mechanical property
    4) Higher thermal property
    5) Good resistance to refrigerant and freon
    6) Suitable for windings that are subjected to constantly high temperature and mechanical stress
    7) Good chemical resistance
    8) Outstanding mechanical and chemical property

    APPLICATION

    - Small type motor ( Electric household appliance, Toys & etc. )
    - Transformer for measuring instrument
    - For communication : High frequency coil for transformer, Coil for power source transformer
    - Coil-small transformer, TV, speaker & etc.

    SPECIFICATION

    Parameter

    130

    155

    180

    200

    120

    40

    Standars

    IEC60317-16 GB/T7095.7

    60317-16 GB/T7095.3

    60317-28 GB/T7095.4

    MW 36 60317-29 BS6811 GB/T7095.6

    MW 18 60317-18 GB/T7095.2

    MW 20 60317-47 GB/T7095.5

    Thermal Class

    130°C

    155°C

    180°C

    200°C

    120°C

    240°C

    Enamel Base Coat

    Polyester

    Modified Polyester

    Polyester-Imide

    Polyester-Imide

    Polyester-formal

    Polyimide

    Enamel Top Coat




    Polyester-Imide



    Range of insulation thickness

    IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm

    Performance

    1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

    1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property

    1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance

    1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon

    1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

    1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation

    Application

    1.Dry and oil-immersed 2.Electrical equipment

    1.Dry and oil-immersed 2.Electrical equipment

    1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer

    1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil

    1.Dry and oil-immersed transformer 2.Electrical equipment

    1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability

    Heat shock

    155°C

    175°C

    200°C

    220°C

    155°C

    300°
