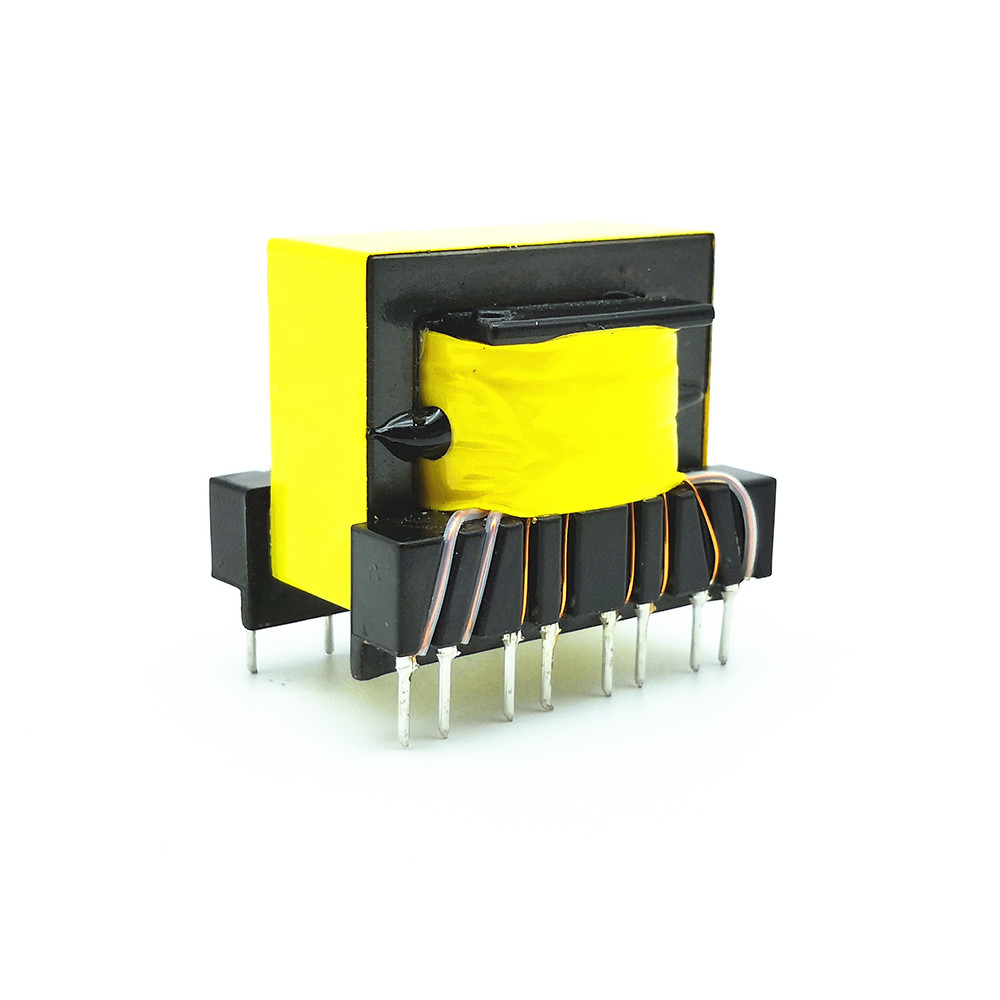

    AC High Frequency Flyback Transformer 1mH 1KHz 50W Power High Performance

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : EE28
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price :
    Payment Terms : T/T, L/C
    Supply Ability : 2000000 Piece/Pieces per Month
    Delivery Time : 10-15 workding days
    • Product Details
    • Company Profile

    AC High Frequency Flyback Transformer 1mH 1KHz 50W Power High Performance

    EE28HIGH FREQUENCY FLYBACK TRANSFORMER AC TRANSFORMER MUNUFACTURER


    High-frequency transformers operate using the same basic principles as standard transformers. The primary difference is that, as their name implies, they operate at much higher frequencies — while most line voltage transformers operate at 50 or 60 Hz, high-frequency transformers use frequencies from 20 KHz to over 1MHz.Operating at a higher frequency has many benefits, the first of which is size.For any given power rating, the higher the frequency, the smaller the transformer can be.Second, because the transformer is smaller, less copper wire is needed, thus reducing the losses and helping to make the transformer more efficient. Also, since the core is typically ferrite, a wide variety of geometries are available so the transformer can be tailor-made for the application. Whether additional shielding or a specific form factor is required, the chances are good that a ferrite core exists to meet the requirement.


    EE28

    Dimention(mm)
    Pin Quantity(pcs)
    Pin Array(mm)
    Power
    34.5*24.5*28
    8+7
    3/4/5/6/8
    50W
    Resistance(MAX)
    Inductance
    Leakage(MAX)
    Test Condition
    15-14=2.0ΩMAX
    15-14=1.0mH±10%
    15-14=150uH MAX
    1KHz 0.25Vrms
