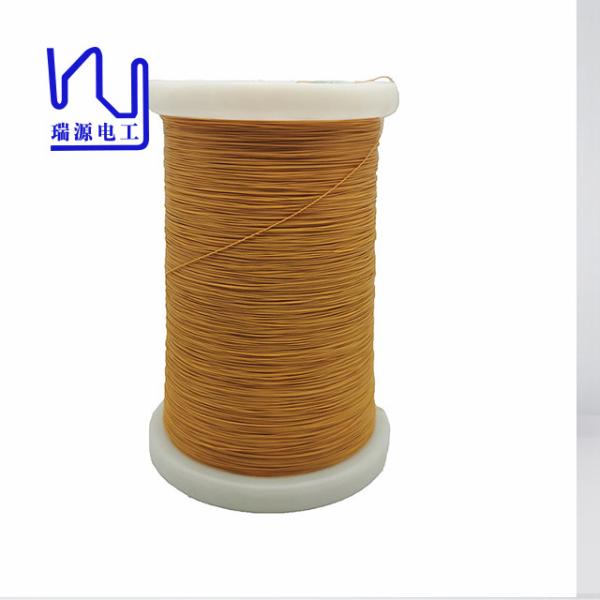

TIW-B 0.32mm ThinTriple Insulated Winding Wire

Miniaturize of Switching Transformer

Exclusion of 'Creepage Distance' requirement and interleaved insulation bring epochal miniaturization.

Excellent insulation quality

Supreme UL grade of insulation:Reinforced Insulation

The most advanced insulation type: Triple extrusion

Electric Strength Test:1.Straight Test:AC 3,000V/1 min above

2.Twisted Teat:AC 6,000V/1 min above

Suitability for High-Frequency

Suitable for 30kHz above high frequency purpose

Equalized electric quality with extrusion type

Low dielectric constant

Handing/Storage convenience-Superior physical strength and durability for abrasion

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 21 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
