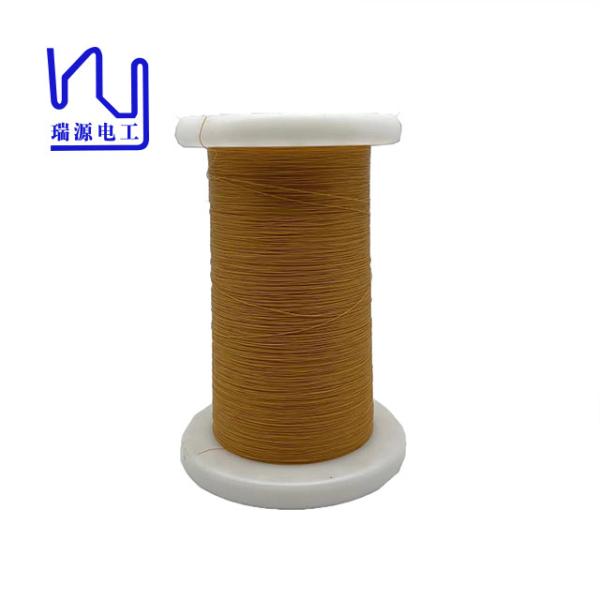

    Tiw -B Iso / Ul 0.15mm Triple Insulated Wire Copper Motor Winding

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.15mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Tiw -B Iso / Ul 0.15mm Triple Insulated Wire Copper Motor Winding

    Triple Insulated Wire TIW -B ISO/UL 0.15mm Copper Motor Winding Wire

    • High reliability: UL,RoHS, REACH, VDE almost all the certificates are available

    • Market Proven: Our triple insulated wire are mainly sold to European customers whom provide their products to very famous brands, and quality is even better than worldwide well known at some points.

    • Free sample 20meters is available

    CharacteristicsTest StandardConclusion
    Bare Wire Diameter0.15±0.008MM0.145-0.155
    Overall Diameter0.35±0.020MM0.345-0.355
    Conductor Resistance879.3-1088.70Ω/KM1043.99Ω/KM
    Breakdown voltageAC 6KV/60S no crackOK
    ElongationMIN:15%19.4-22.9%
    Solder ability420±10℃ 2-10SecsOK
    AdhesionPull and break at a constant speed, and the exposed copper of the wire should not exceed 3mm
    ConclusionQualified

    Product Name

    Triple Insulated Wire TIW -B ISO/UL 0.15mm Copper Motor Winding Wire

    Size

    0.15mm

    Insulation

    Polyurethane

    Thermal Rating

    Class 130
