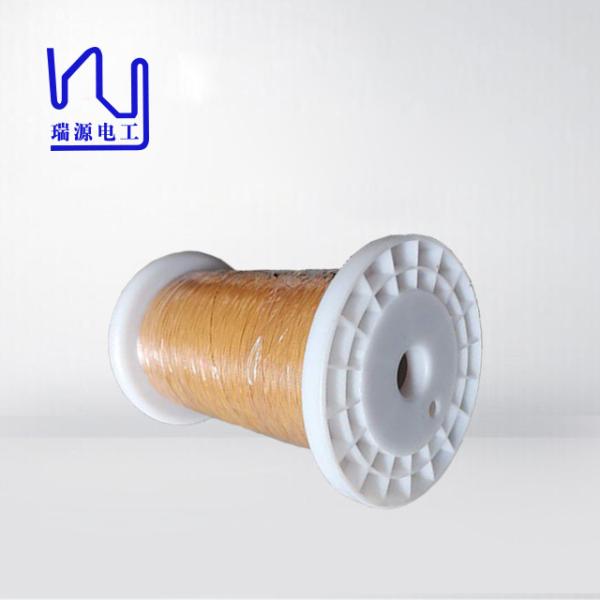

    UL Passed Uew Tiw Wire 0.40mm Diameter Super Thin

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.4mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    UL Passed Uew Tiw Wire 0.40mm Diameter Super Thin

    Transformer Using TIW-B Triple Insulated Copper Winding Wire


    Triple insulated wire sometimes called Furukawa wires that is widely used in transformer. We can provide class B/F size range from 0.15-1.0mm. UL system certificated give you high quality guarantee.

    Miniaturize of Switching Transformer

    Exclusion of 'Creepage Distance' requirement and interleaved insulation bring epochal miniaturization.

    Excellent insulation quality

    Supreme UL grade of insulation:Reinforced Insulation

    The most advanced insulation type: Triple extrusion

    Electric Strength Test:1.Straight Test:AC 3,000V/1 min above

    2.Twisted Teat:AC 6,000V/1 min above

    Suitability for High-Frequency

    Suitable for 30kHz above high frequency purpose

    Equalized electric quality with extrusion type

    Low dielectric constant

    Handing/Storage convenience-Superior physical strength and durability for abrasion

    Improved Productivity

    Simple production processes: No barrier tape and interleaved insulation tape are required

    Solderability: Soldering can be conducted without removal of insulation layer


    Description

    Designation

    Thermal Grade(℃)

    Diameter

    (mm)

    Breakdown Voltage(KV)

    Solderability

    (Y/N)

    Triple Insulated Copper Wire


    Class B/F/H

    130/155/180

    0.13mm-1.0mm

    ≧17

    Y

    Tinned

    130/155/180

    0.13mm-1.0mm

    ≧17

    Y

    Self Bonding

    130/155/180

    0.13mm-1.0mm

    ≧15

    Y

    seven strand litz wire

    130/155/180

    0.10*7mm-

    0.37*7mm

    ≧15

    Y


    Product Name

    TIW-B Electronic Transformer using thin Triple Insulated layer Wire

    Size

    0.4mm

    Insulation

    Polyurethane

    Thermal Rating

    Class 130

    Sample

    Avaible on your requests.
