Brand Name : | Ruiyuan |
Model Number : | 0.1*2 |
Certification : | UL/ISO9001/ISO14001/RoHS/Reach |
Price : | Negotiation |
Payment Terms : | Negotiation |
Supply Ability : | 200 Ton/Tons per Month |
Delivery Time : | 2-15 days |

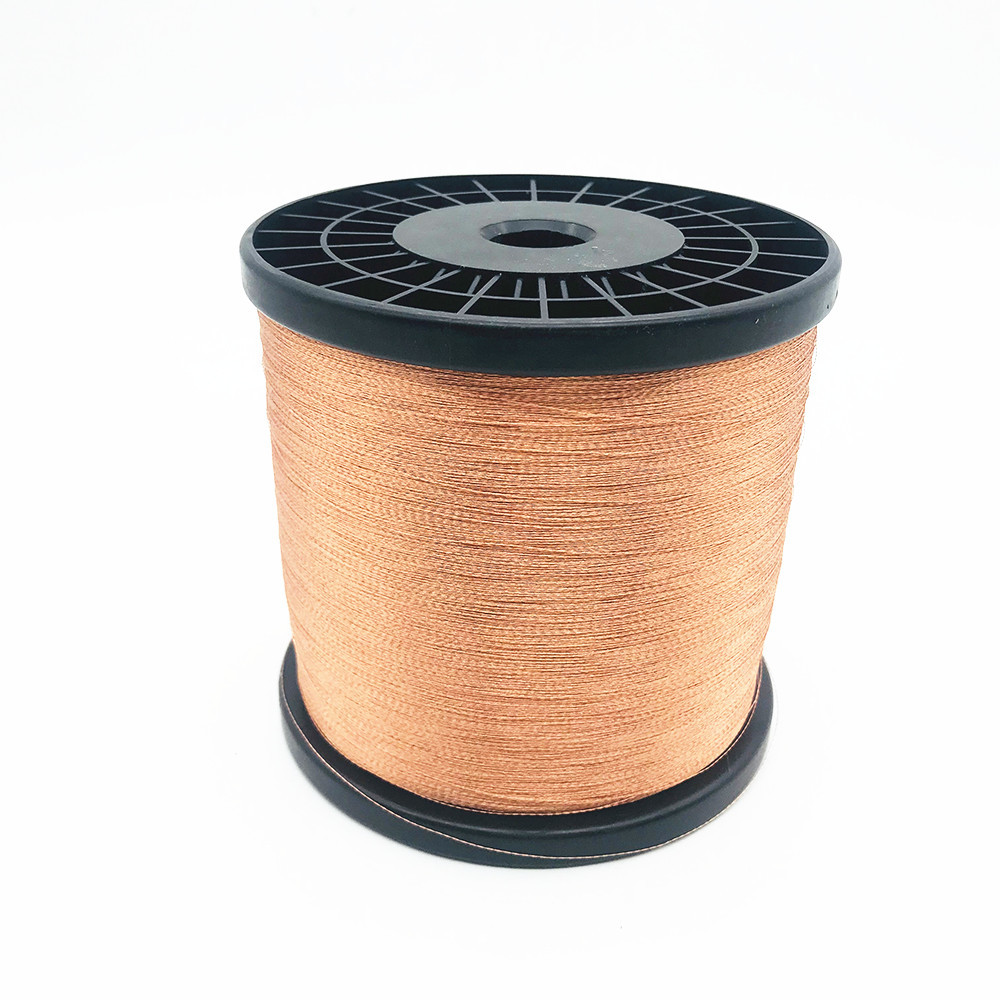

awg 38 0.1mm*2 Strands Copper Twisted Litz Wire Insulated Stranded Wire
Litz wire employs a stranded wire with individually insulated conductors (forming abundle). The strands must be insulated from each other.
Characteristics | Technical requests | Test Results | Conclusion | |
Sample | ||||
1 | Surface | Good | OK | OK |
2 | Breakdown Voltage | ≥ 1.1 KV | 2.4 | |
3 | Enamel Continuity | ≤ 3 hole/6m | 1 | |
4 | Outer diameter | 0.107-0.125 mm | 0.110-0.113 | |
5 | Inner diameter | 0.1 mm±0.003 | 0.098-0.10mm | |
6 | Conductor Resistance(20℃ Ω/Km) | ≤1.191 | 1.101 | |
7 | Pitch | 3.5±1 mm | OK | |
8 | Solderability | 390±5℃/ 4 s | OK |
![]() |
