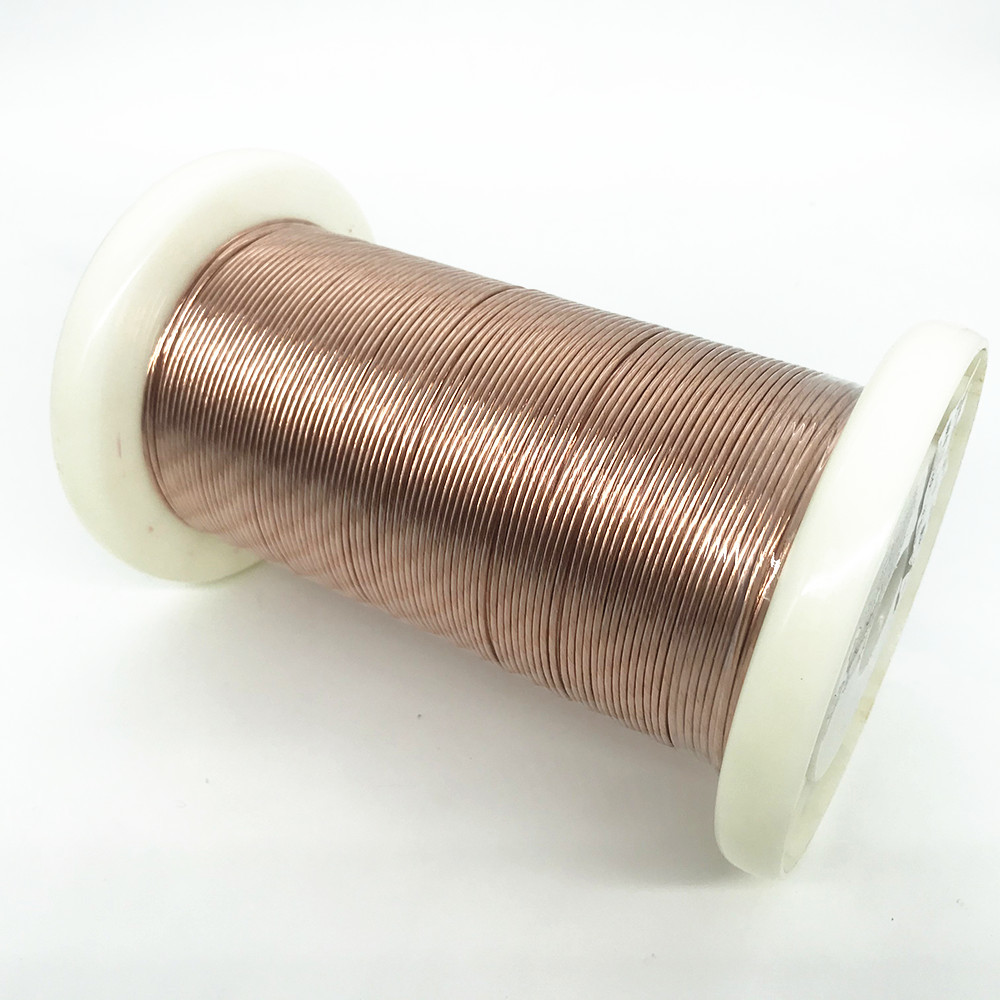

    40AWG 0.08mm * 24 Strands Mylar Wire PET Coat For Motor

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08mm * 24
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Negotiation
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    40AWG 0.08mm * 24 Strands Mylar Wire PET Coat For Motor


    40AWG 0.08mm * 24 Strands Mylar Wire PET Coat Copper Litz Wire For Motor

    Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems.

    Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.

    40AWG 0.08mm * 24 Strands Mylar Wire PET Coat For Motor

    Description

    Conductor diameter*Strand number

    0.08*24

    Single wire


    Conductor diameter(mm)0.080
    Conductor diameter tolerance (mm)±0.003
    Minimal insulation thickness(mm)0.005
    Maximal overall diameter (mm)0.103
    Thermal Class155

    Strand Composition


    Strand number24
    Pitch(mm)20±3
    Stranding directionS

    Insulation layer


    CategoryNylon
    UL

    /


    Material specs(mm*mm or D)250+300
    Times of Wrapping2
    Overlap(%) or thickness(mm),min0.05
    Wrapping directionS

    Characteristics

    Max O. D(mm)0.66
    Max pin holes 个/6m30
    Max resistance (Ω/Km at20℃)157.3
    Mini breakdown voltage (≧V )1100
    CertificateE229341
