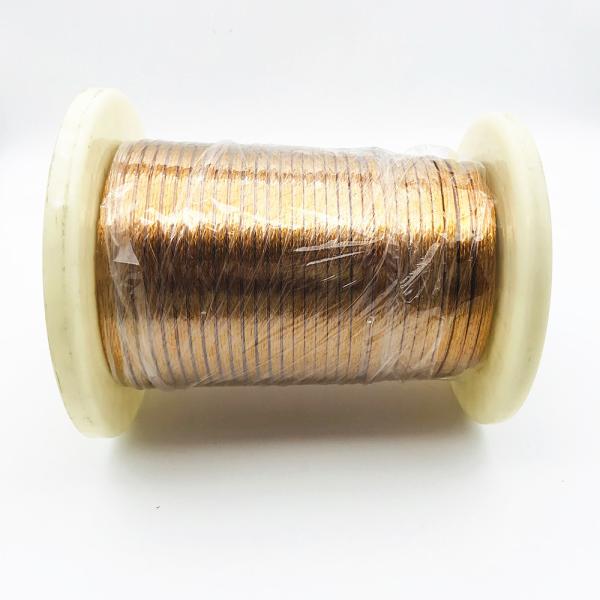

RoHS 0.4mm * 45 Strands Taped Copper Litz Wire

Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap RoHS 0.4mm * 45 Strands Taped Copper Litz Wire from wholesalers

    Buy cheap RoHS 0.4mm * 45 Strands Taped Copper Litz Wire from wholesalers
    • Buy cheap RoHS 0.4mm * 45 Strands Taped Copper Litz Wire from wholesalers
    • Buy cheap RoHS 0.4mm * 45 Strands Taped Copper Litz Wire from wholesalers

    RoHS 0.4mm * 45 Strands Taped Copper Litz Wire

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.4*45
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 100Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    RoHS 0.4mm * 45 Strands Taped Copper Litz Wire

    0.4mm * 45 Strands Taped Litz Wire 5mm * 2mm Profiled Copper Litz Wire For Motor


    The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.


    • Fast delivery within 5 days.
    • 2 years quality assurance.
    • Free reture.
    • Quick reply in 30 minitue.

    Test report: 0.4mm x 15 x 3(5 x2)

    Standard
    Test result
    Conductor diameter(mm)
    0.40±0.005
    0.396-0.400
    Single wire diameter(mm)
    0.417-0.439
    0.427-0.432
    Width(mm)55.02-5.18
    Thickness(mm)21.97-2.07
    No. of strand
    45
    45
    Max resistance(Ω/m at20℃)
    Max. 0.003149
    0.00308
    Mini breakdown voltage(V)
    Min.6000
    11800

    RoHS 0.4mm * 45 Strands Taped Copper Litz Wire
